Important Notes:
This product does NOT include Raspberry Pi Pico board.
Overview:
This breakout board can help you wire and know the status of the GPIO.

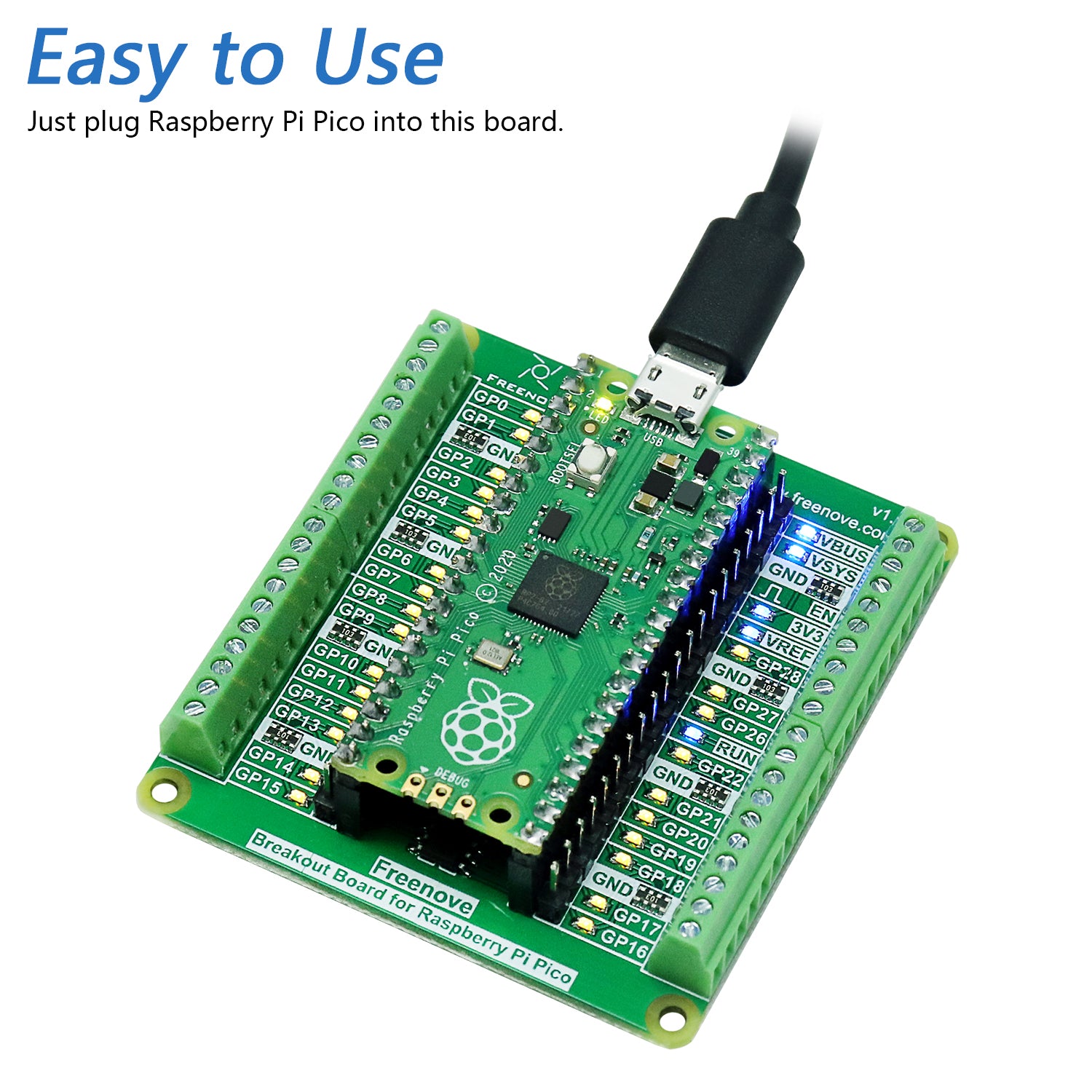

Just plug your Raspberry Pi Pico into this board to complete the installation.
We provide free technical support to help you with any questions and problems.

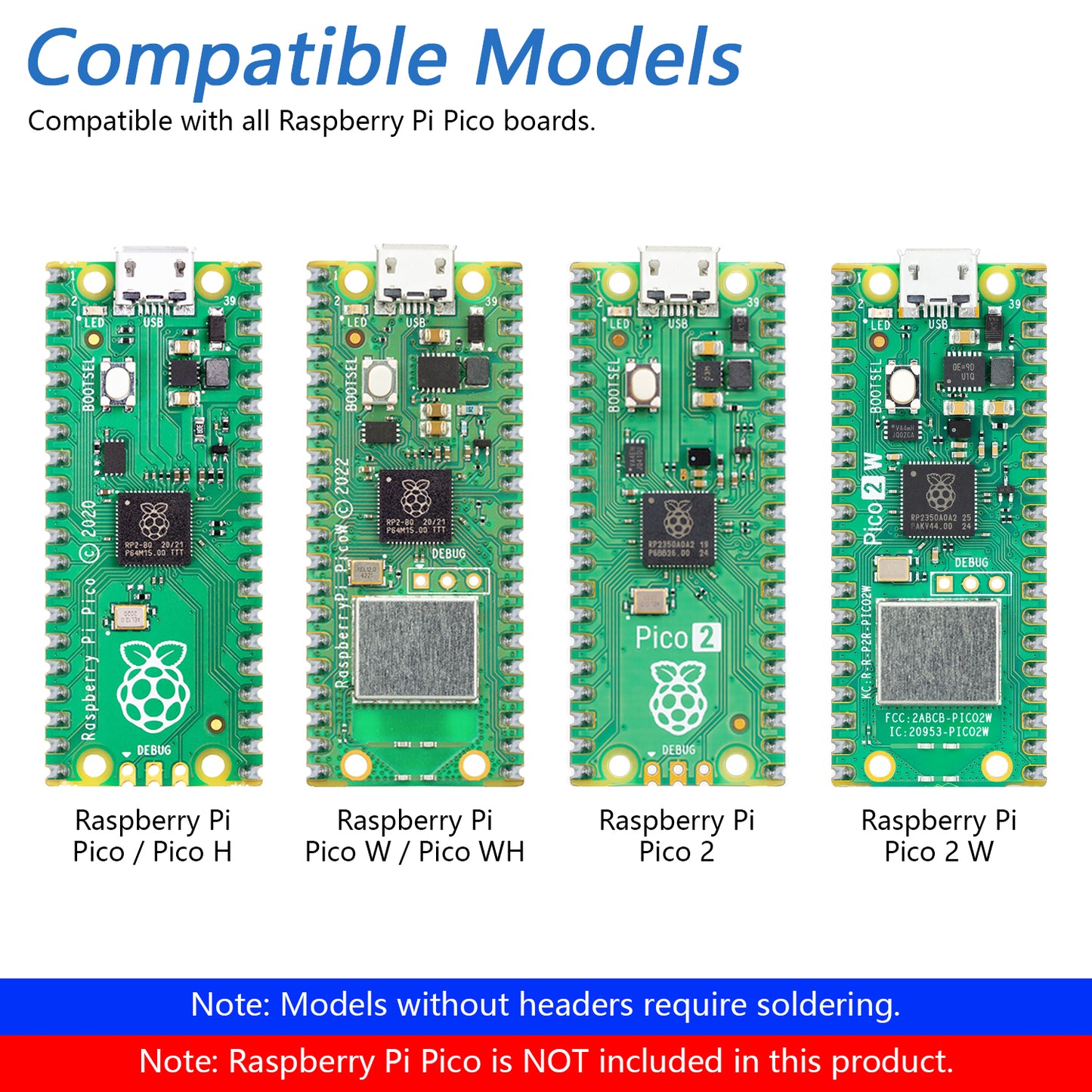

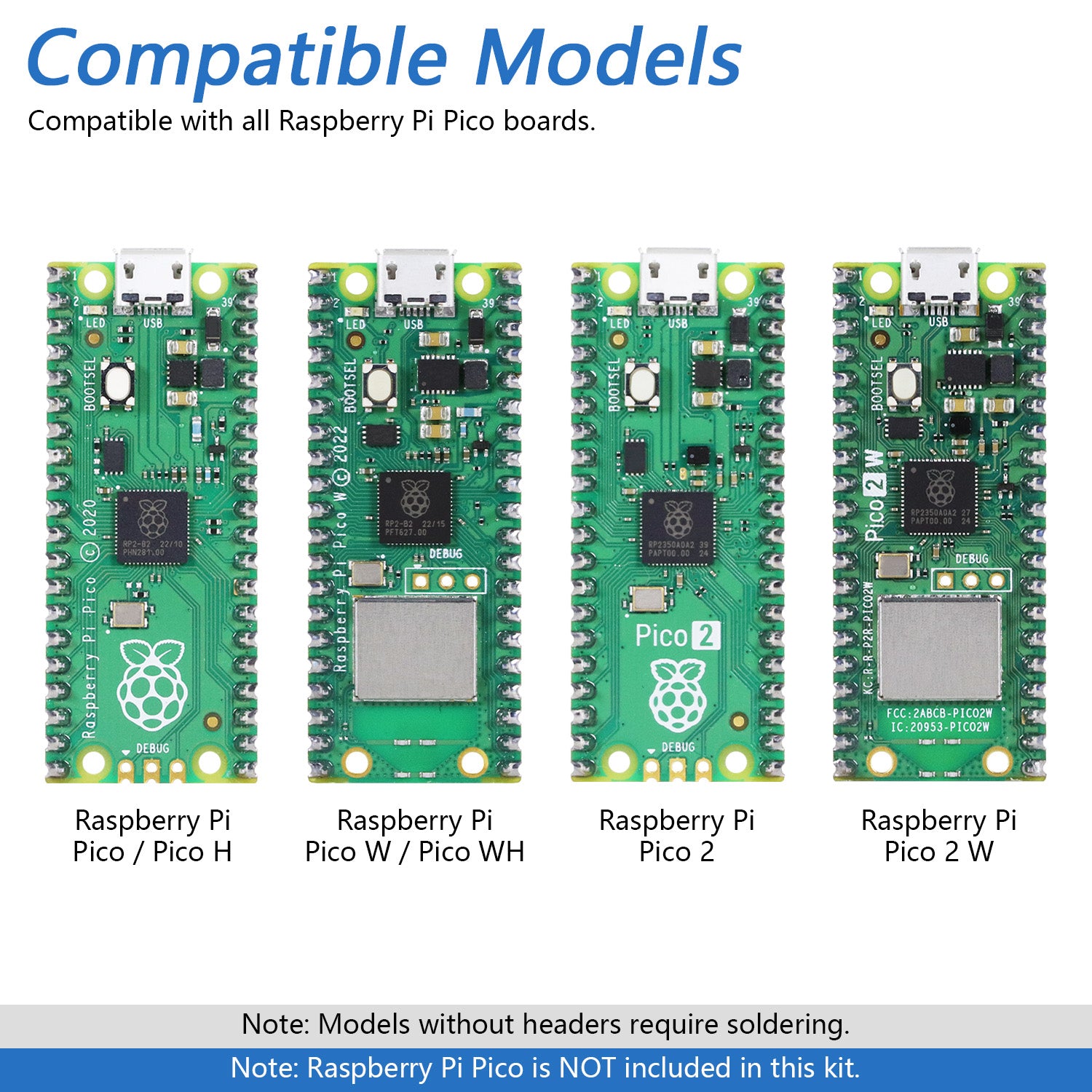

Compatible Models:
* Raspberry Pi Pico / Pico H / Pico W
Main Features:
* Tutorial
Comes with tutorial to show how to use. (Download needed, no paper tutorial.)
You can download them before purchasing:
http://freenove.com/fnk0081

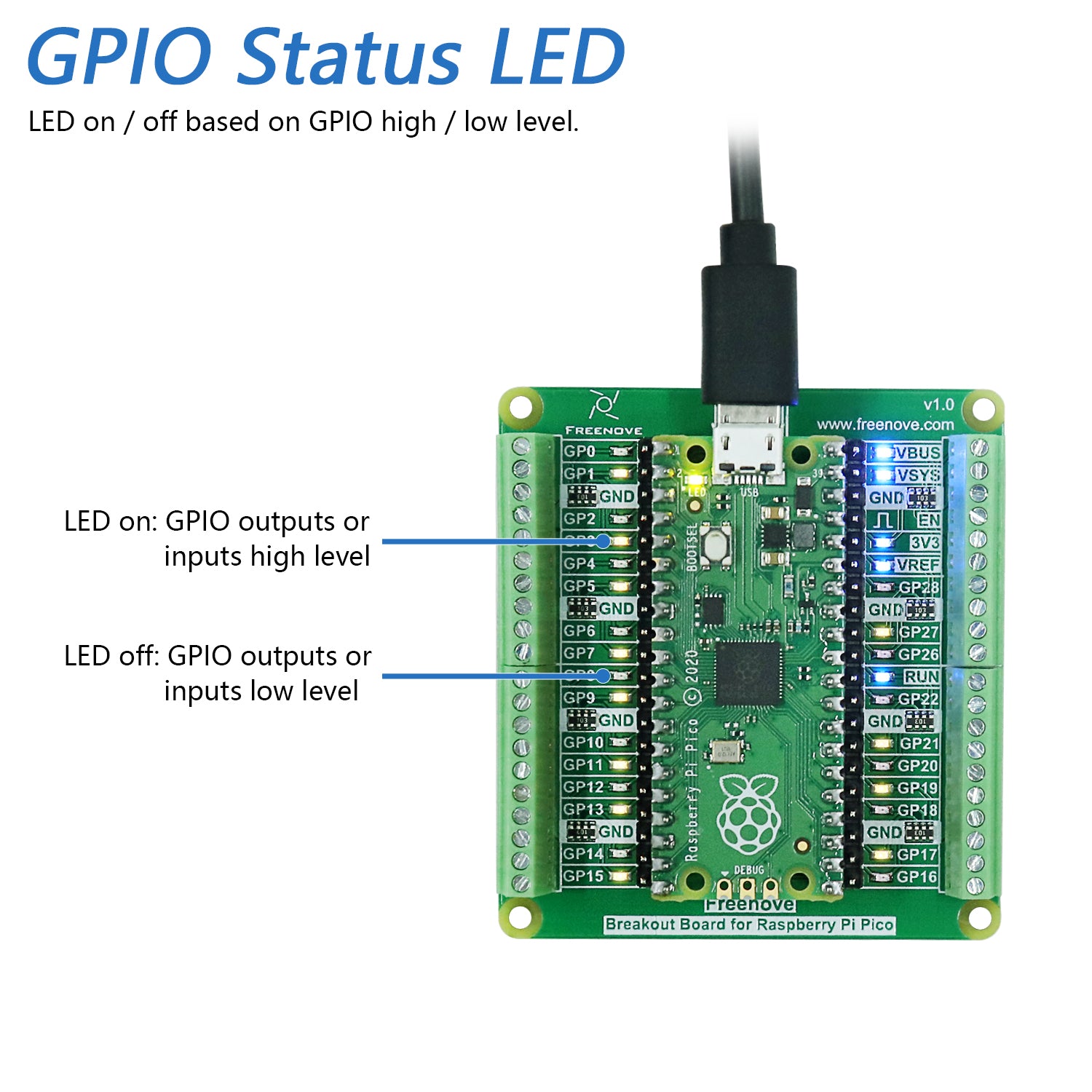

* GPIO status LED
LED on if GPIO outputs/inputs high level, LED off if GPIO outputs/inputs low level.

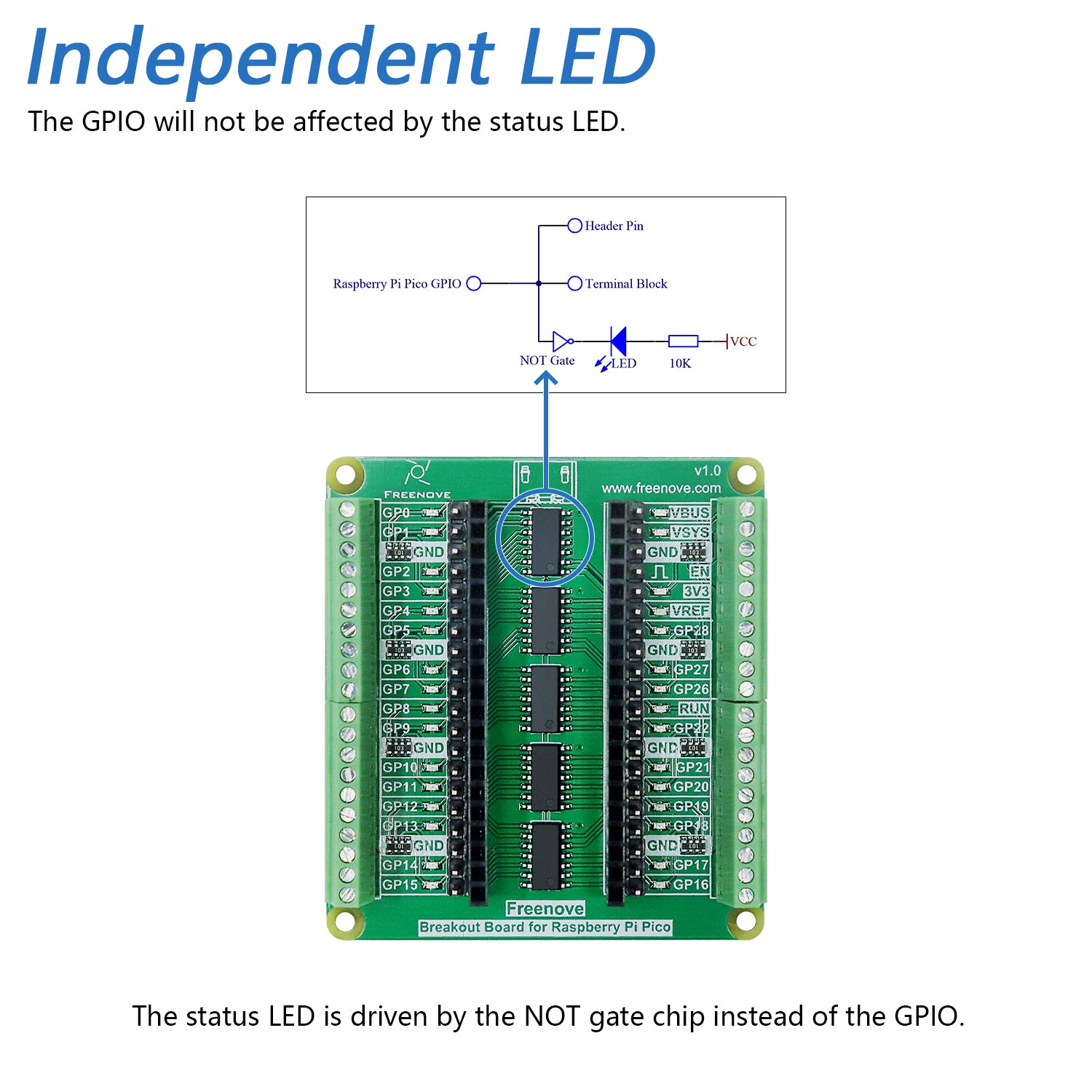

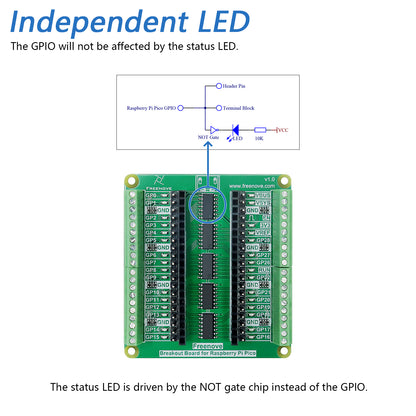

* Independent LED
The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected.

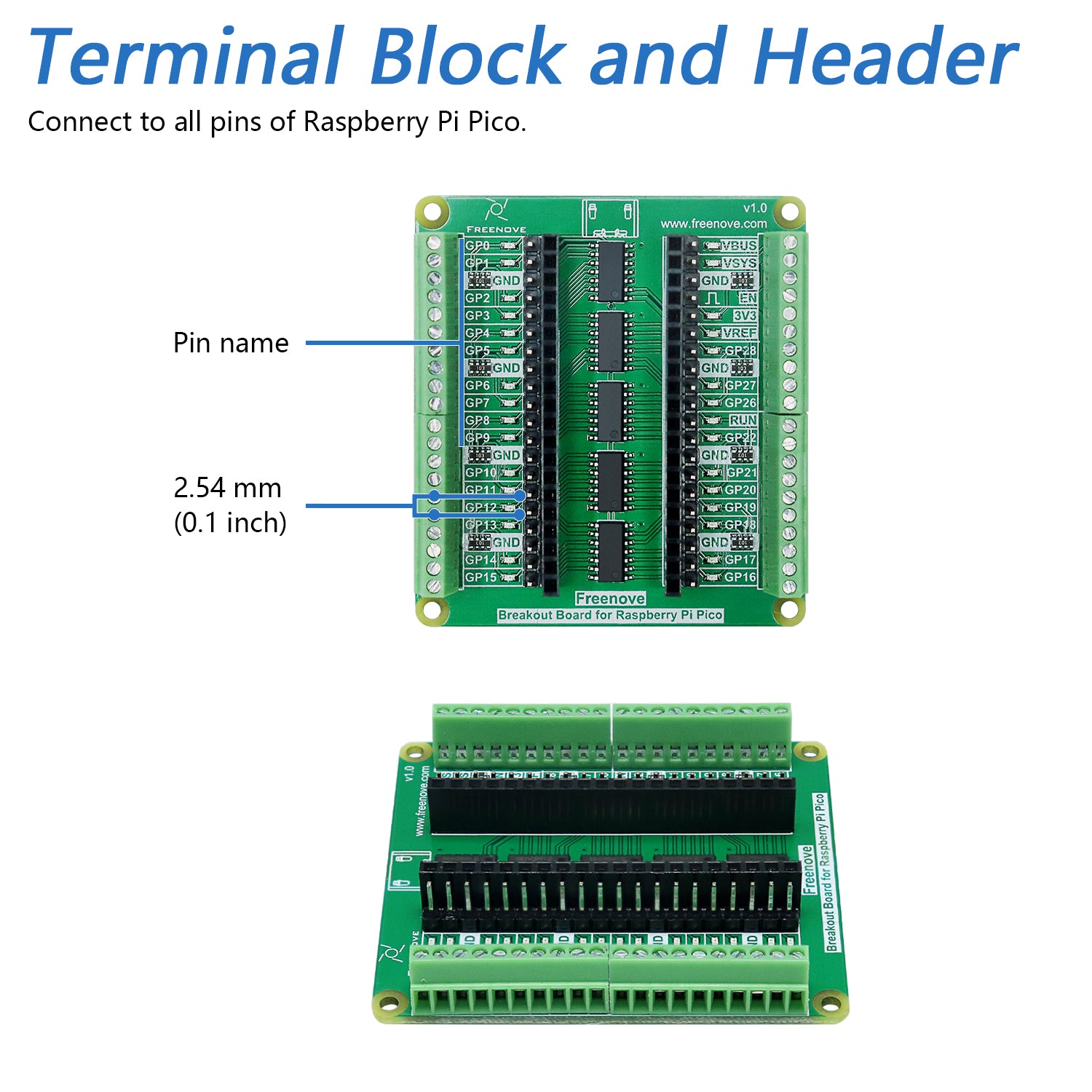

* Terminal block and header
Connect to all GPIO headers of Raspberry Pi Pico, 2.54mm / 0.1in pitch.
* GPIO name
The name of each GPIO is printed next to the port.

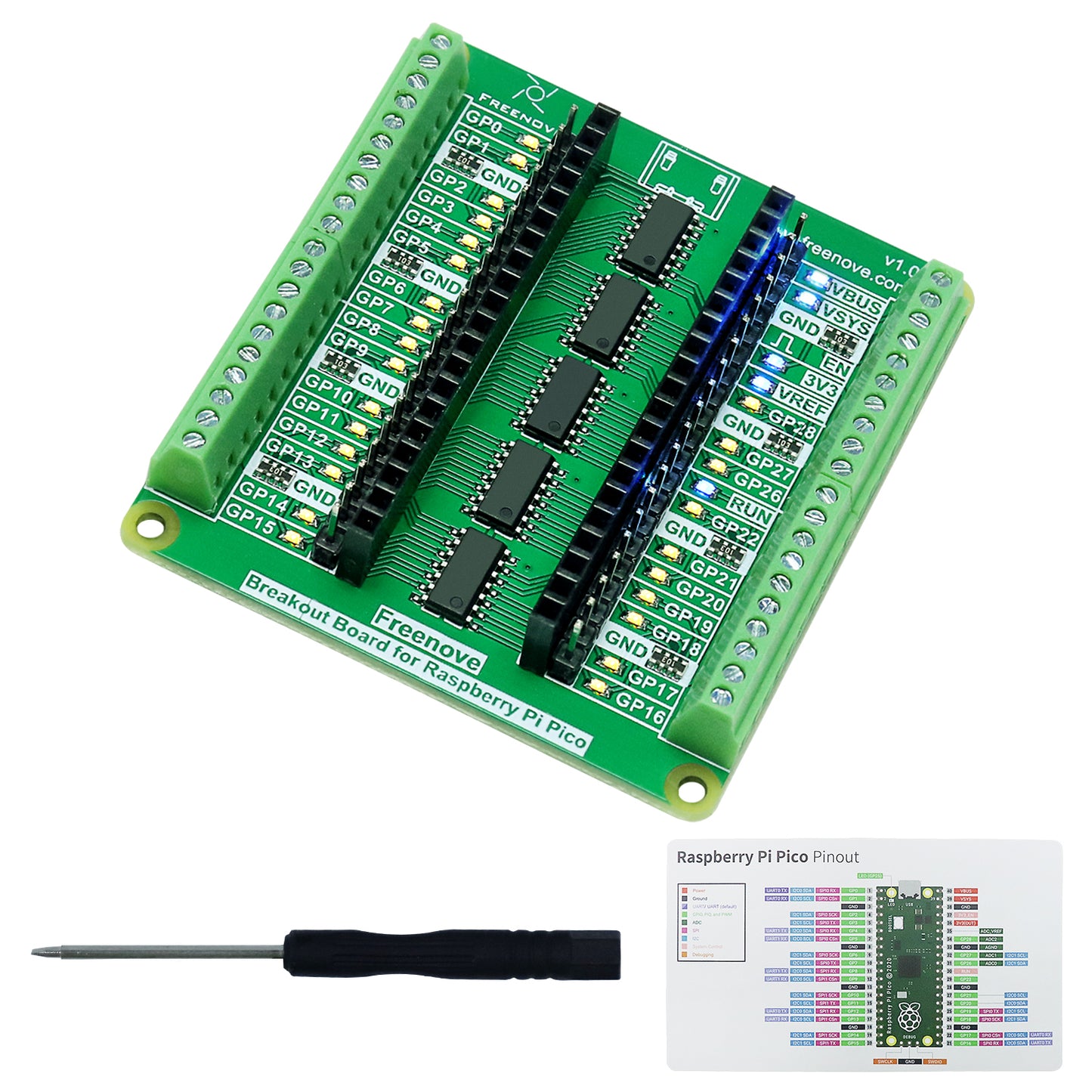

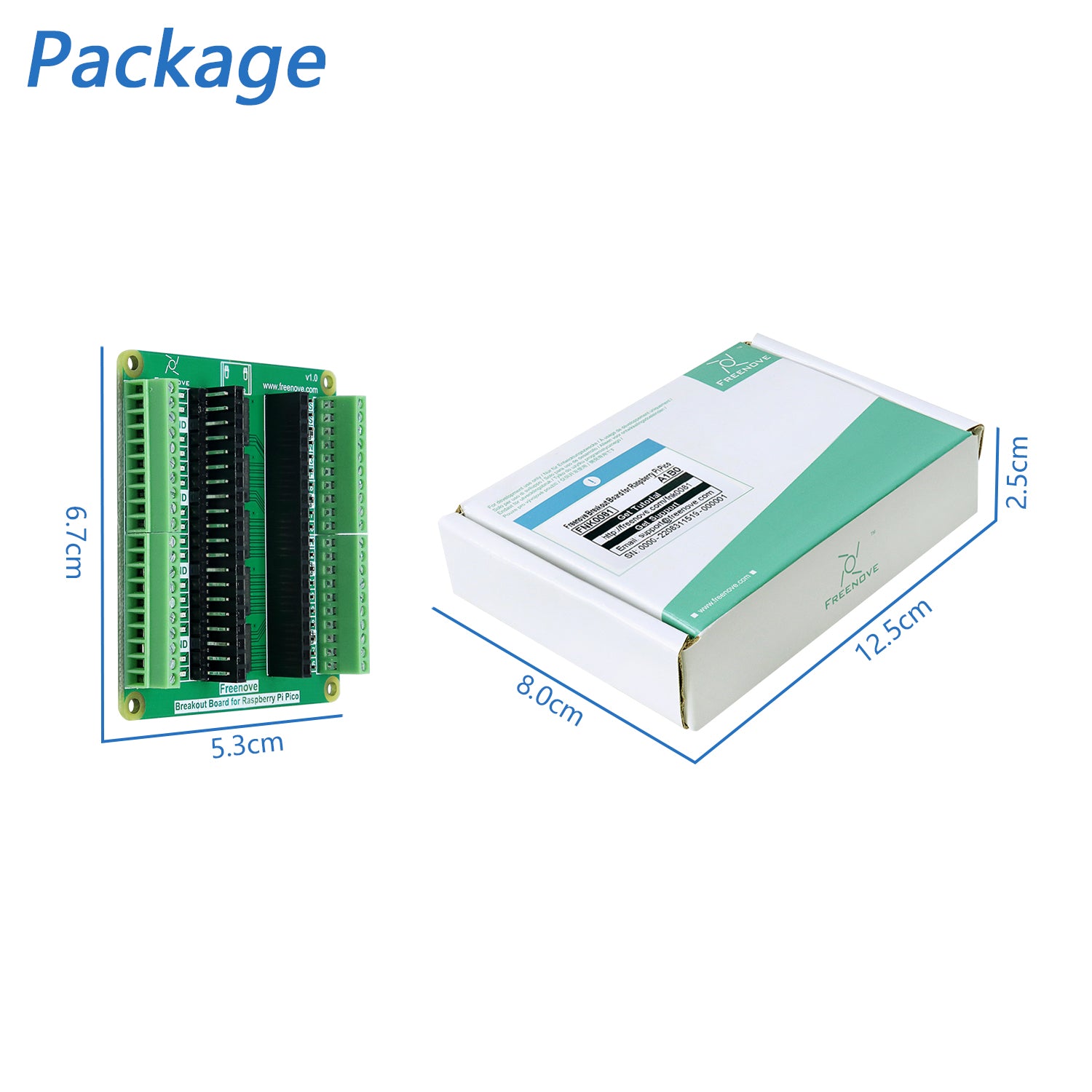

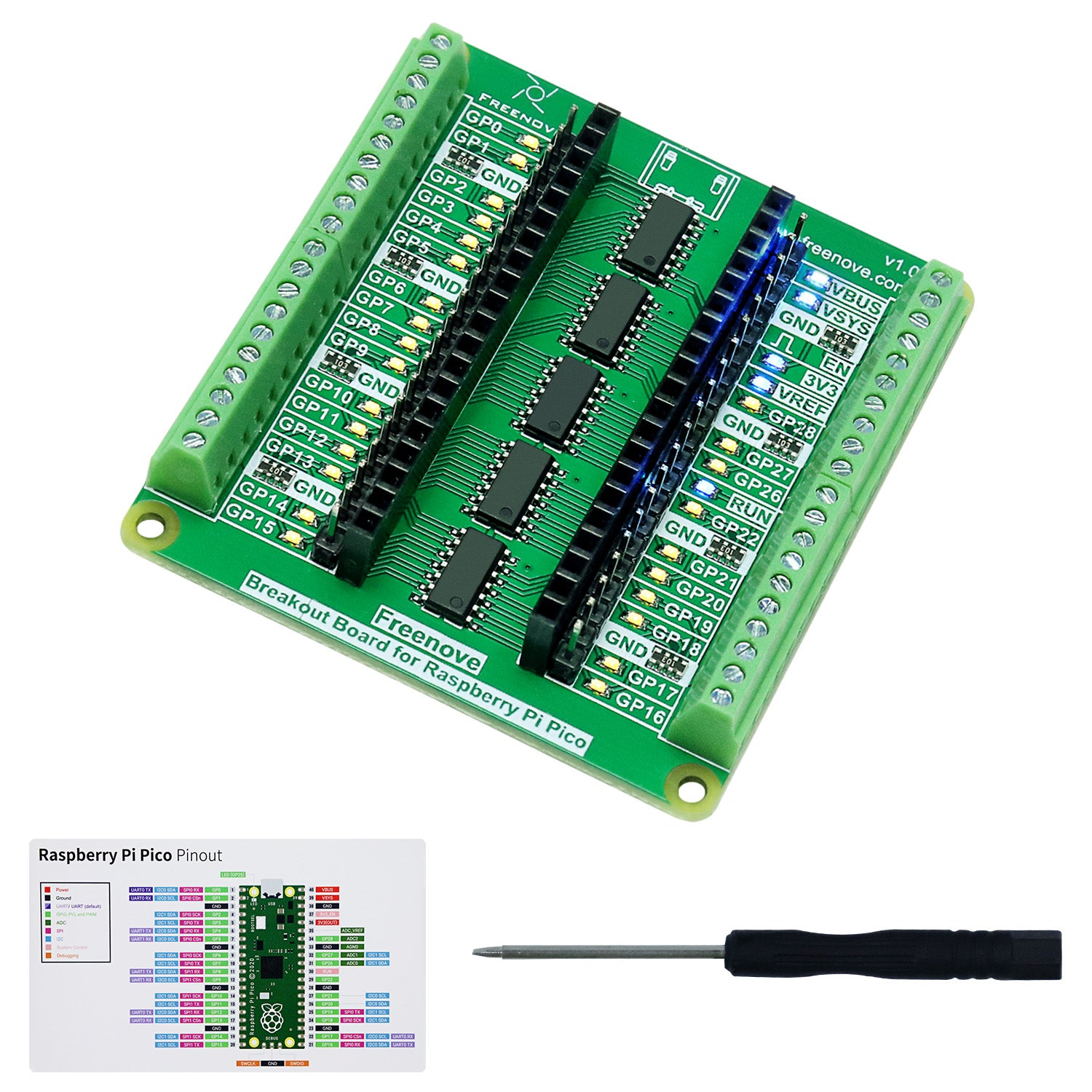

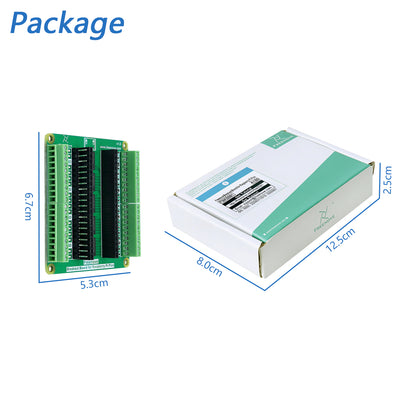

Package Includes:
1 x Breakout Board for Raspberry Pi Pico
1 x Pinout Card
1 x Slotted Screwdriver
This product does NOT include Raspberry Pi Pico board.
Overview:
This breakout board can help you wire and know the status of the GPIO.
Just plug your Raspberry Pi Pico into this board to complete the installation.
We provide free technical support to help you with any questions and problems.
Compatible Models:
* Raspberry Pi Pico / Pico H / Pico W
Main Features:
* Tutorial
Comes with tutorial to show how to use. (Download needed, no paper tutorial.)
You can download them before purchasing:
http://freenove.com/fnk0081
* GPIO status LED
LED on if GPIO outputs/inputs high level, LED off if GPIO outputs/inputs low level.
* Independent LED
The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected.
* Terminal block and header
Connect to all GPIO headers of Raspberry Pi Pico, 2.54mm / 0.1in pitch.
* GPIO name
The name of each GPIO is printed next to the port.
Package Includes:
1 x Breakout Board for Raspberry Pi Pico
1 x Pinout Card
1 x Slotted Screwdriver
