Important Notes:
This kit does NOT include Raspberry Pi and its accessories.
This display has no HDMI port and is only compatible with certain models of Raspberry Pi.

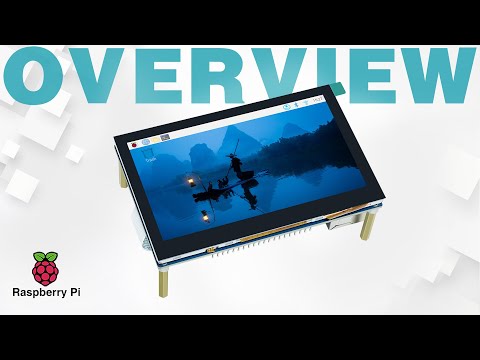

Overview:

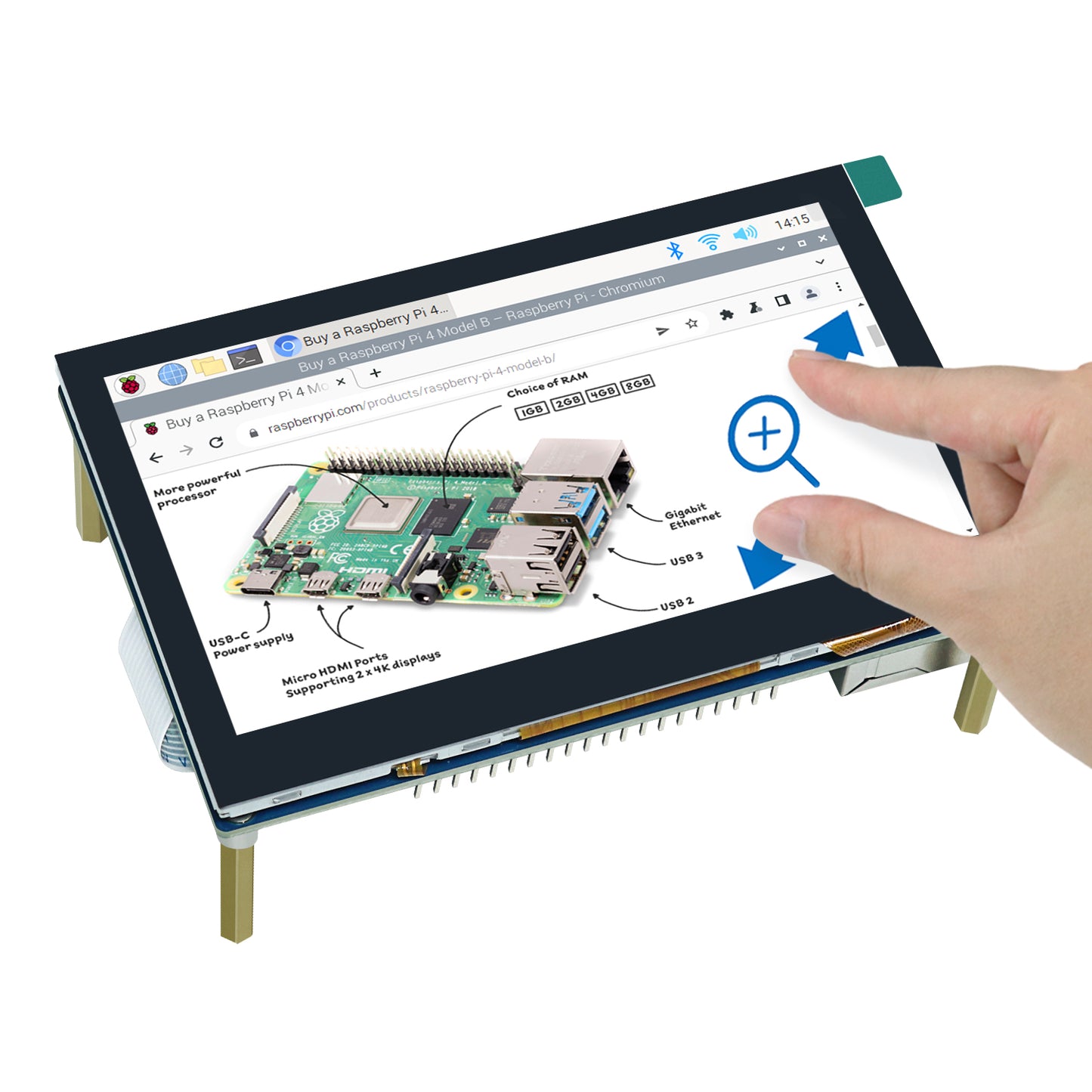

This is a monitor with 5-point touch capacitive screen for Raspberry Pi.

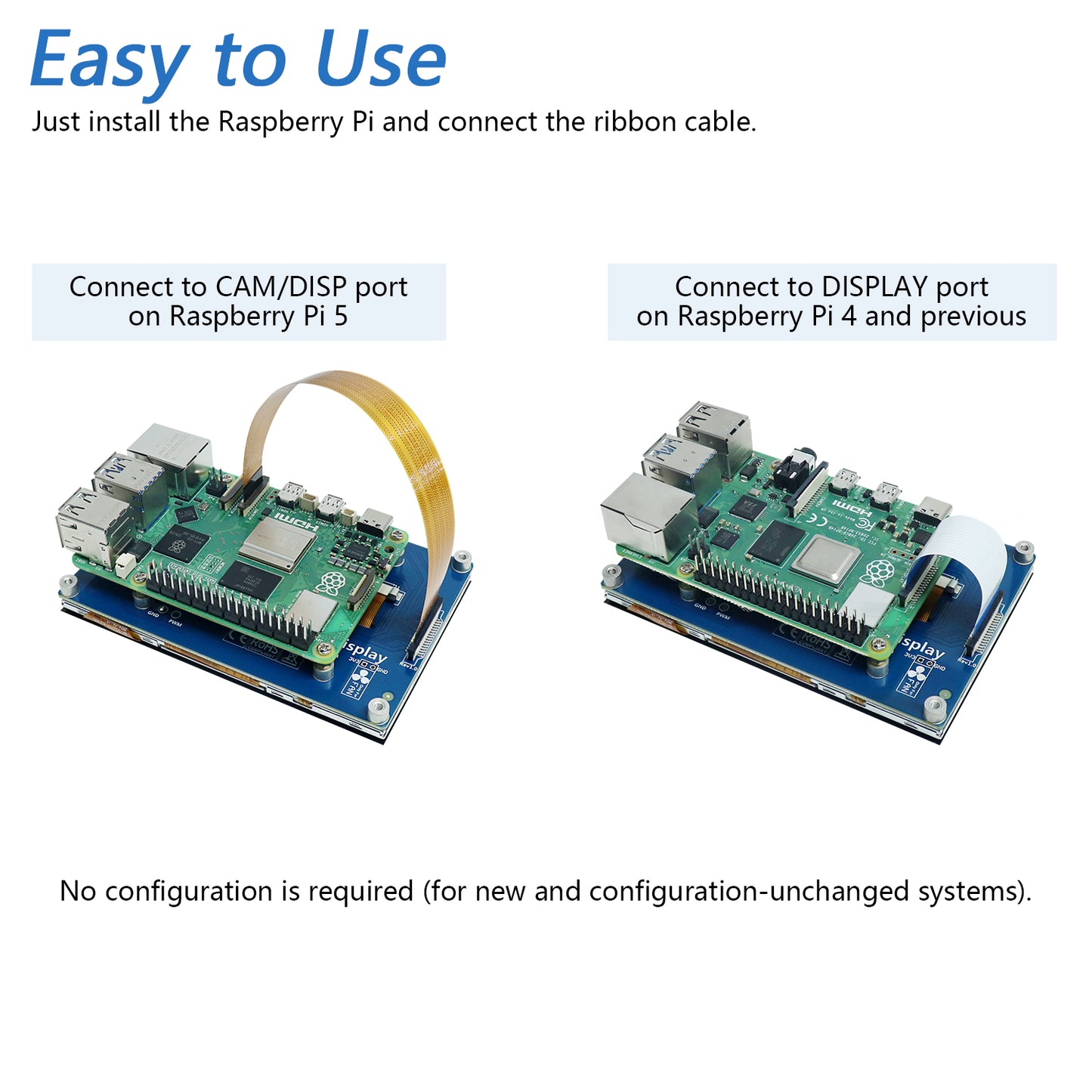

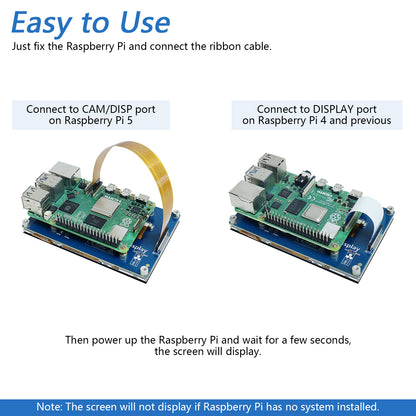

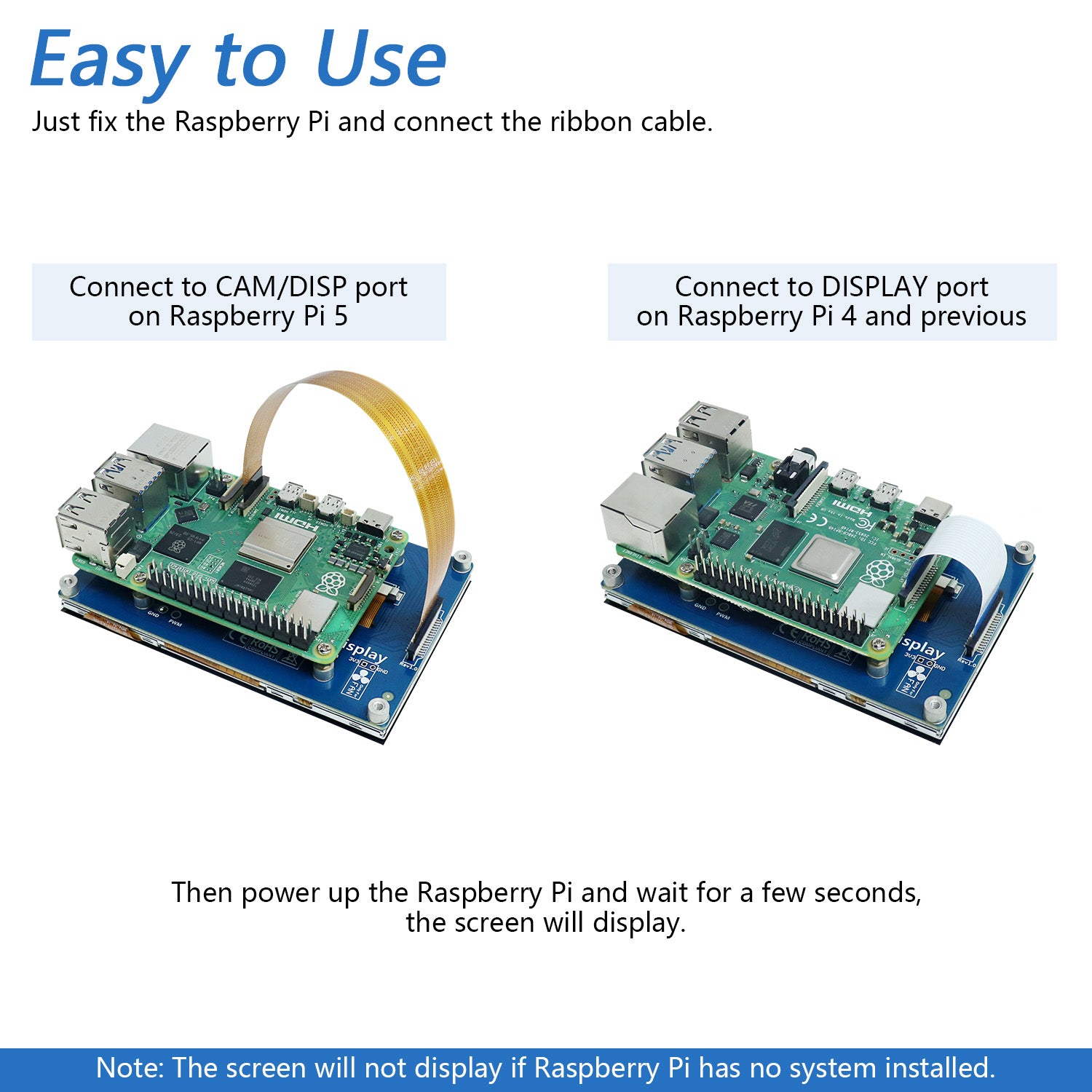

Only need the connection to the display port (marked CAM/DISP on Raspberry Pi 5, DISPLAY on 4 and previous).
We provide free technical support to help you with any questions and problems.

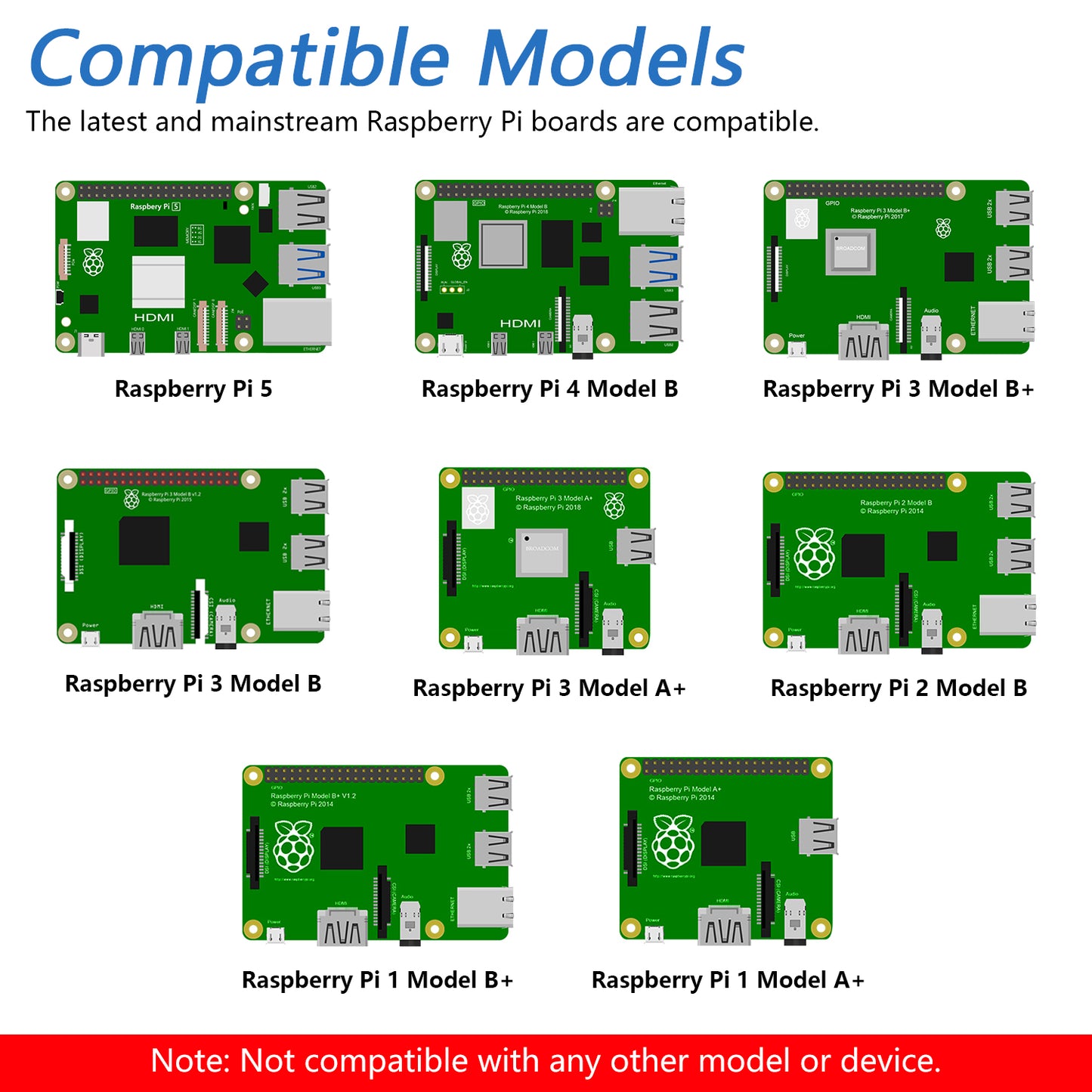

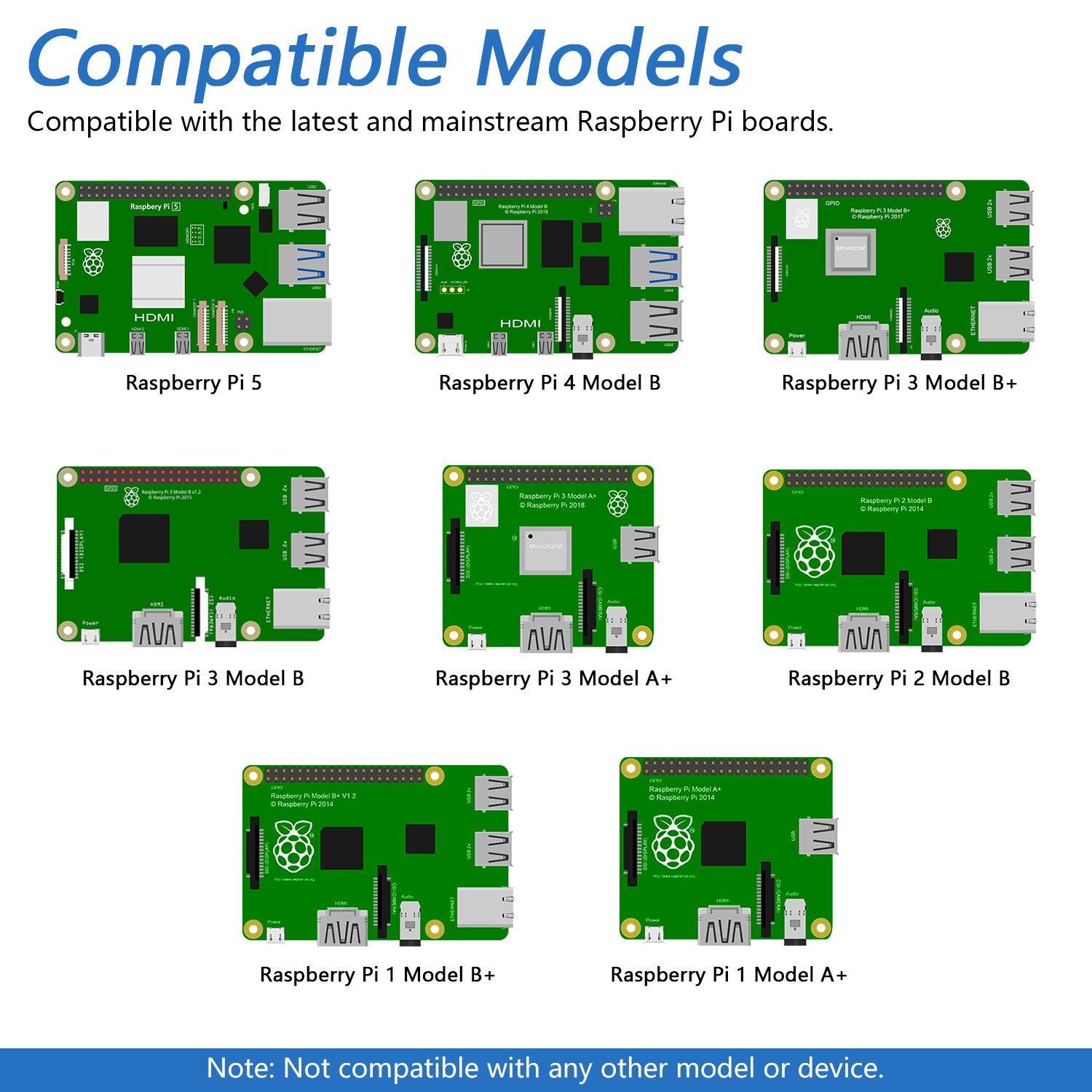

Compatible Models:
* Raspberry Pi 5 / 4B / 3B+ / 3B / 3A+ / 2B / 1B+ / 1A+
(Note: No HDMI, not compatible with any other device.)
Tutorial:
Comes with tutorial to show how to use. (Downloadable and paper tutorial.)
You can download it before purchasing:
http://freenove.com/fnk0078
Screen Parameters:
Size: 4.3 inch
Resolution: 800 x 480 pixel
Refresh rate: 60 Hz

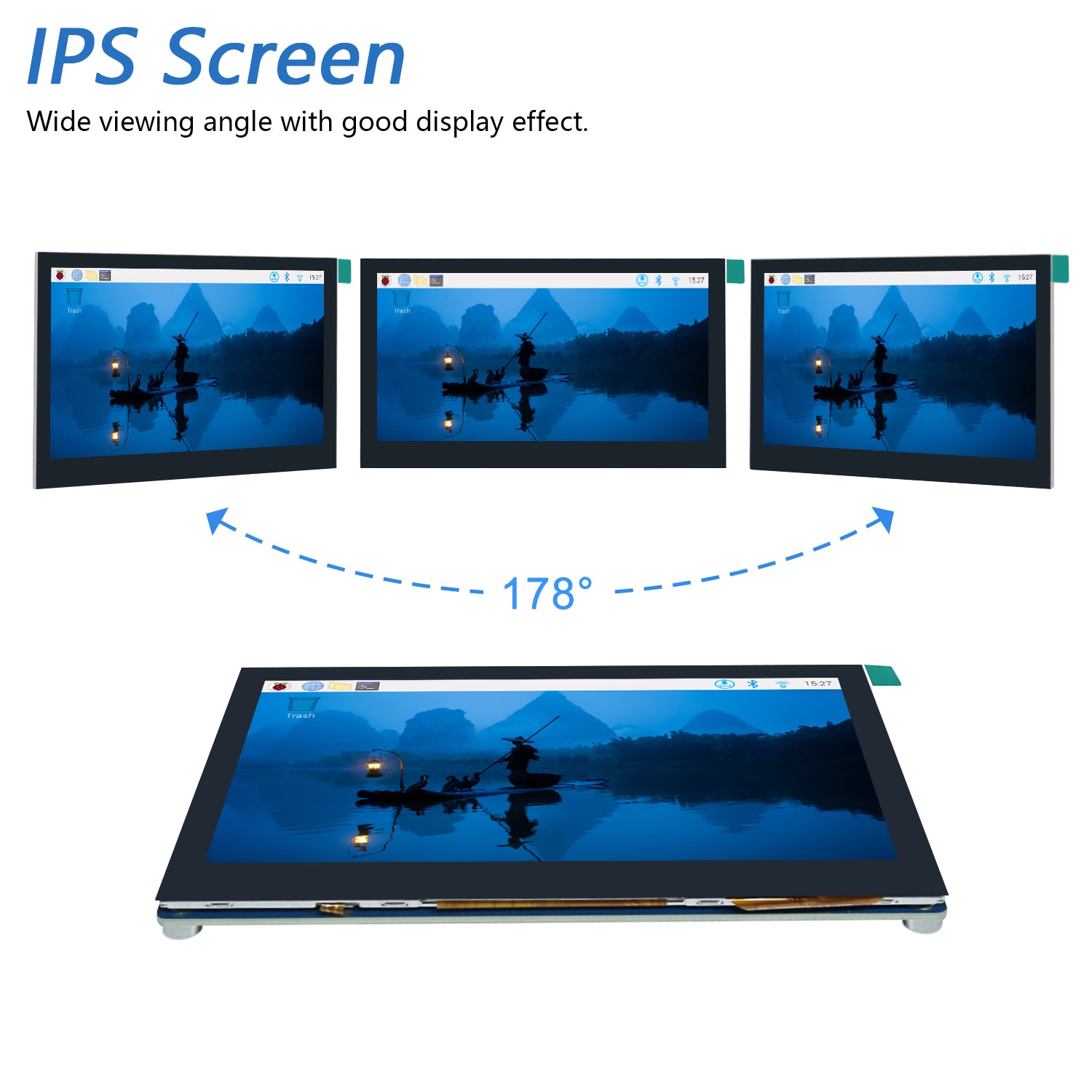

Screen type: IPS wide viewing angle

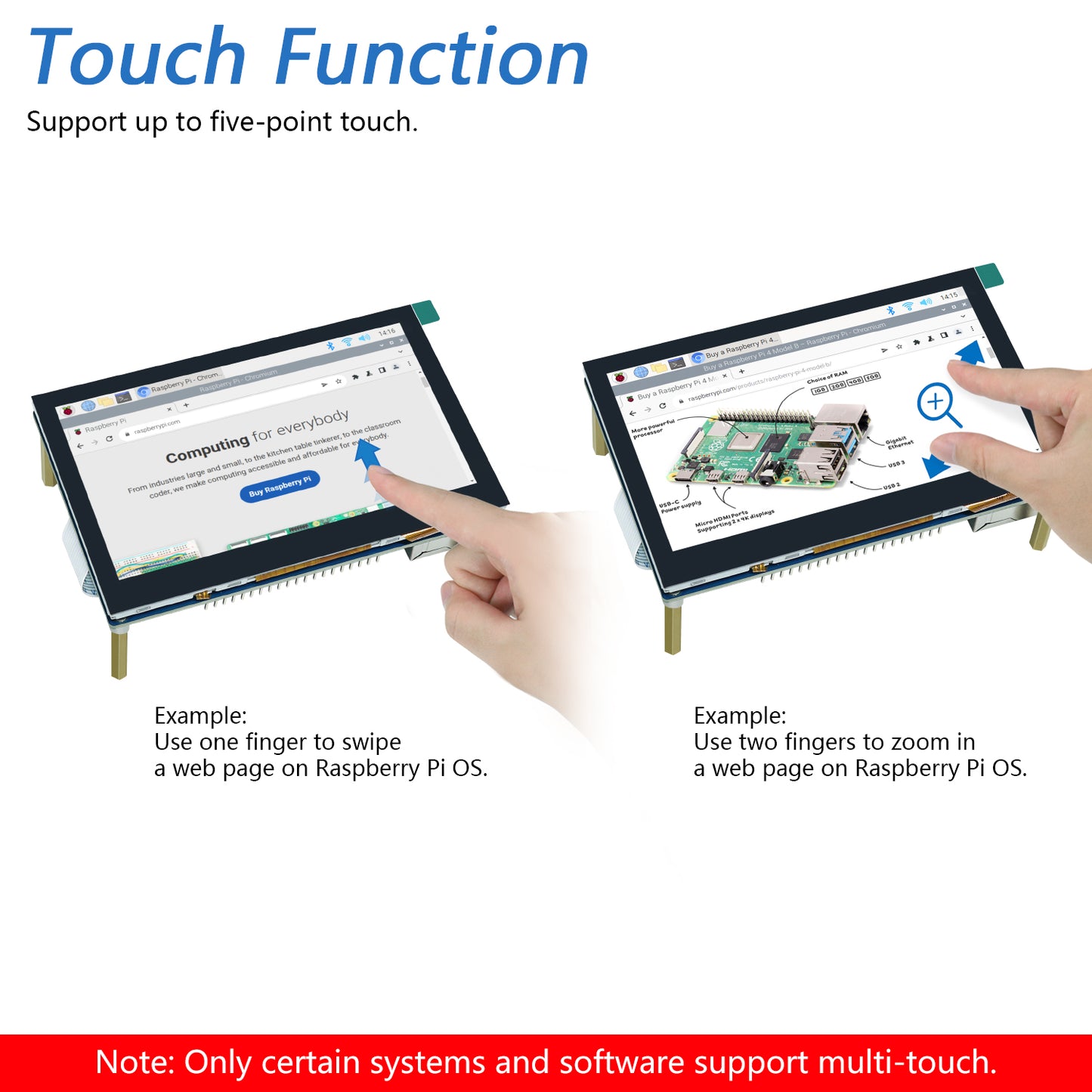

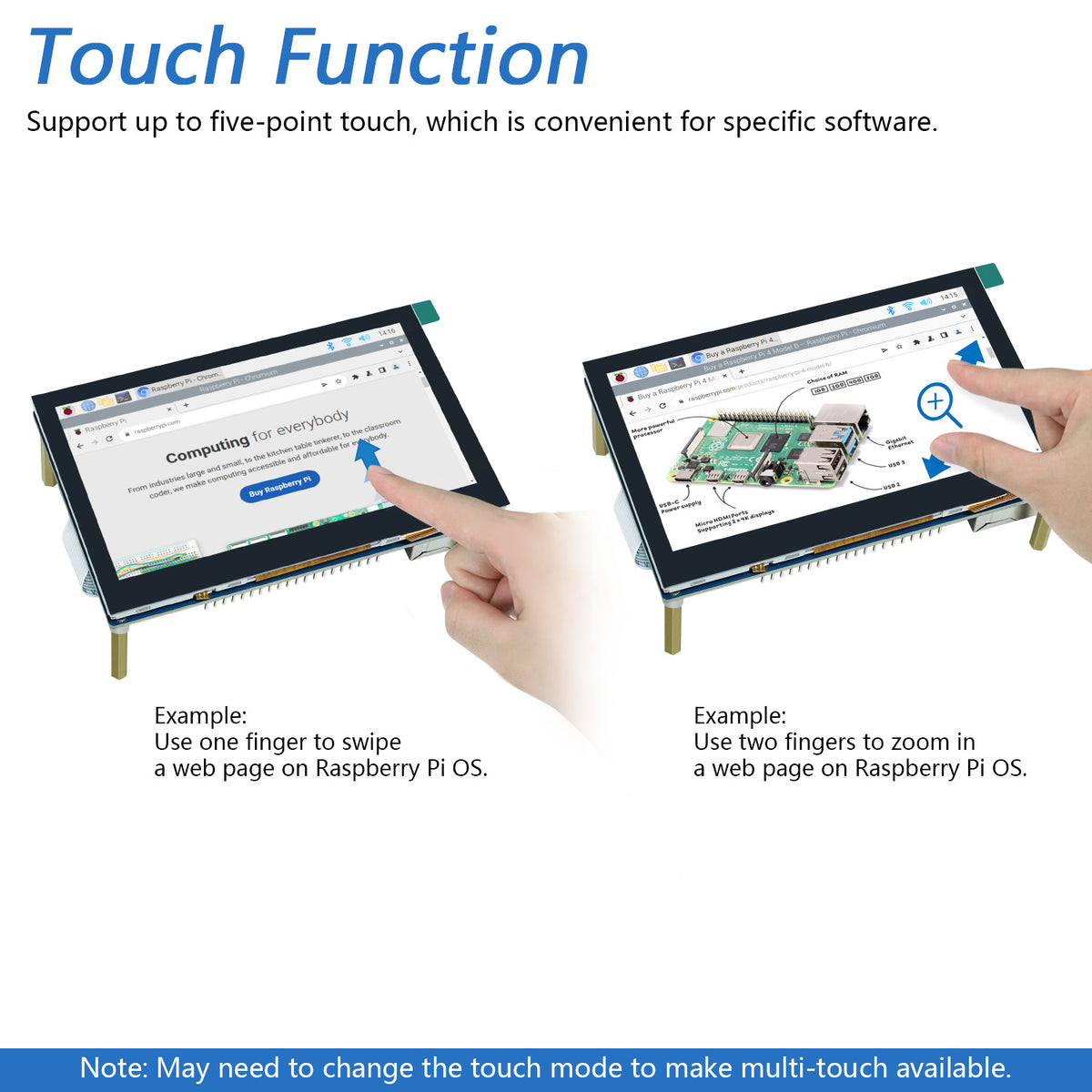

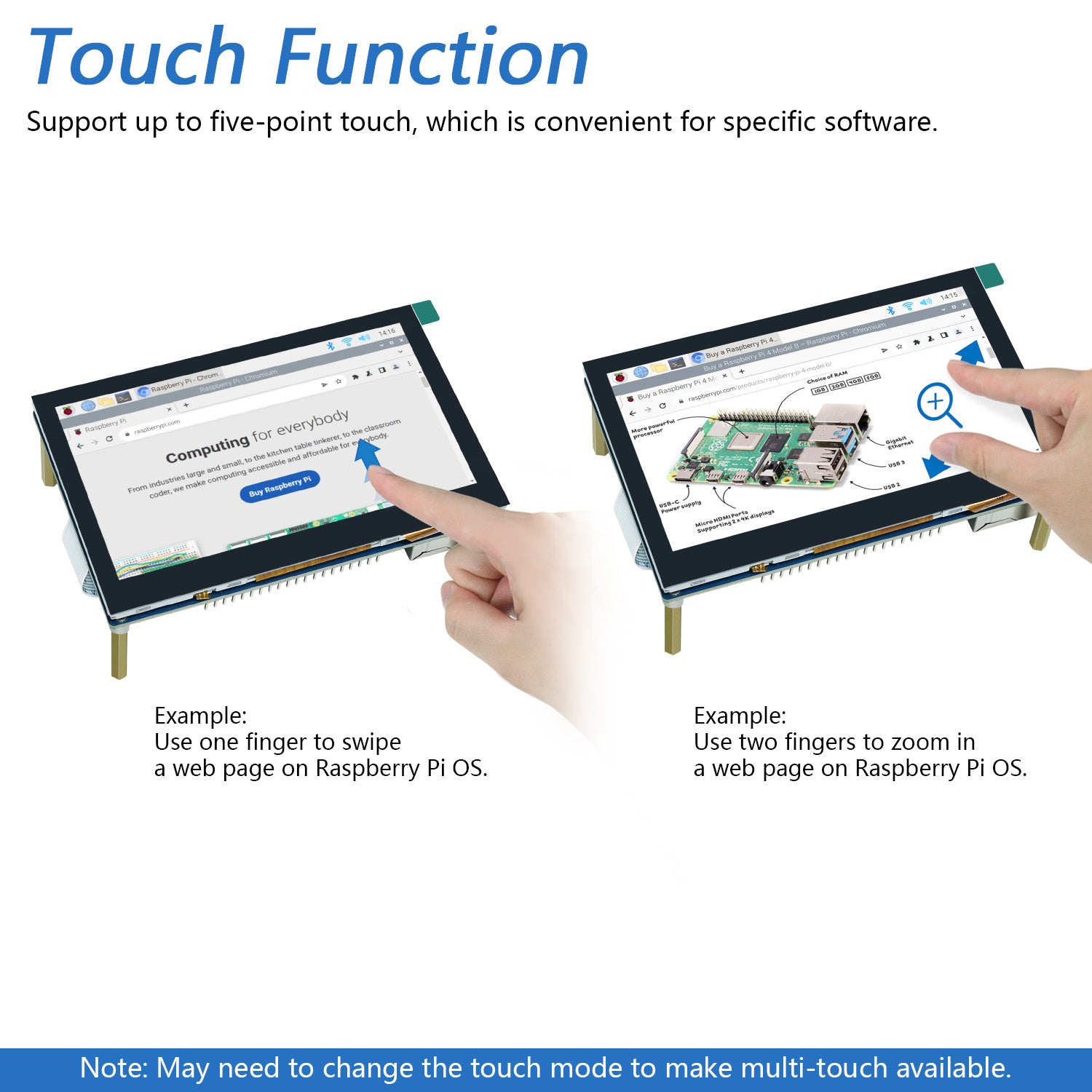

Touch type: 5-point touch capacitive
Interface: MIPI DSI

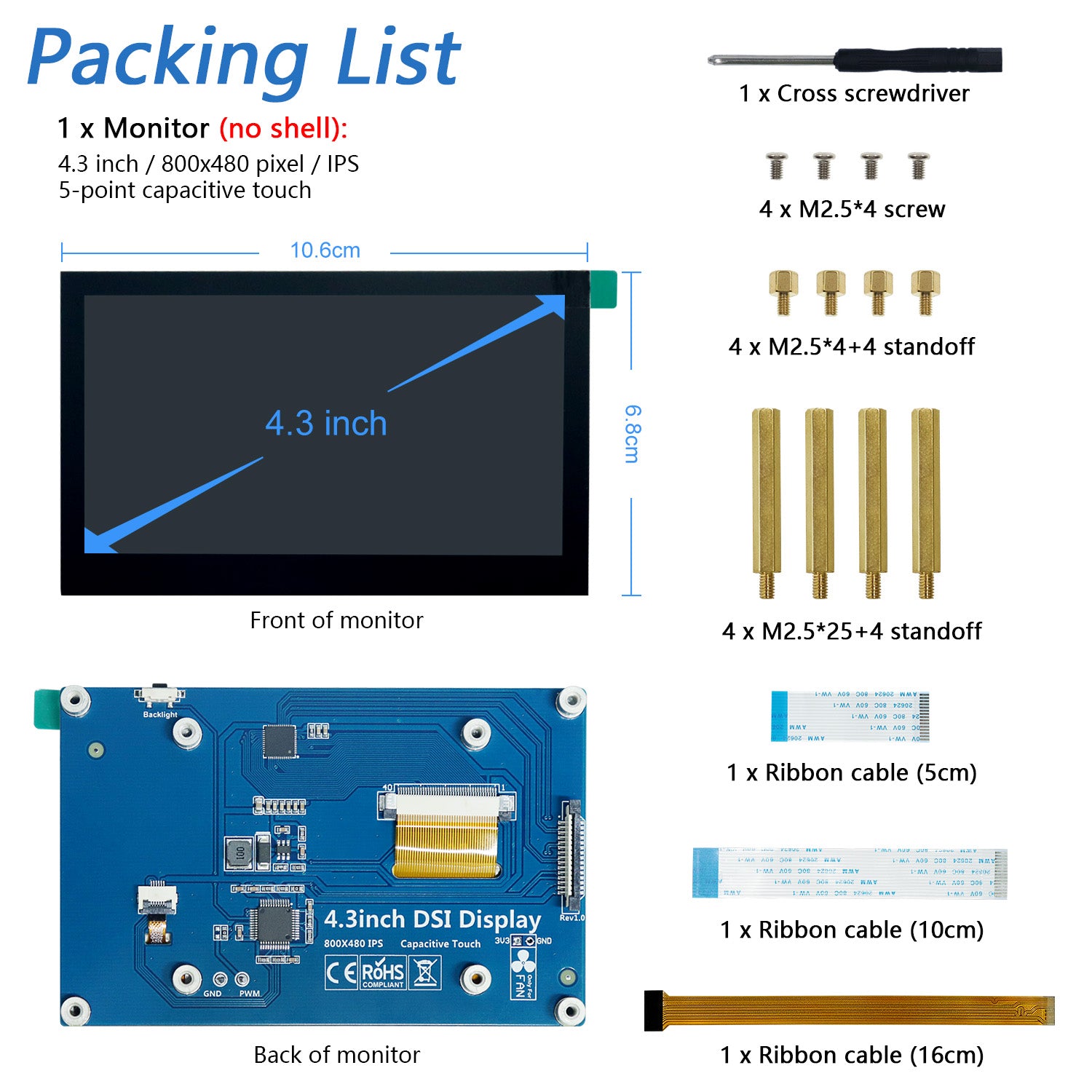

Package Includes:
1 x Touchscreen monitor
1 x Ribbon cable (5cm)
1 x Ribbon cable (10cm)
1 x Ribbon cable (16cm) for 5
1 x Cross screwdriver
4 x M2.5*4+4 standoff
4 x M2.5*4 screw
4 x M2.5*25+4 standoff
