Description
Overview:
This breakout board can help you wire and know the status of the GPIO.

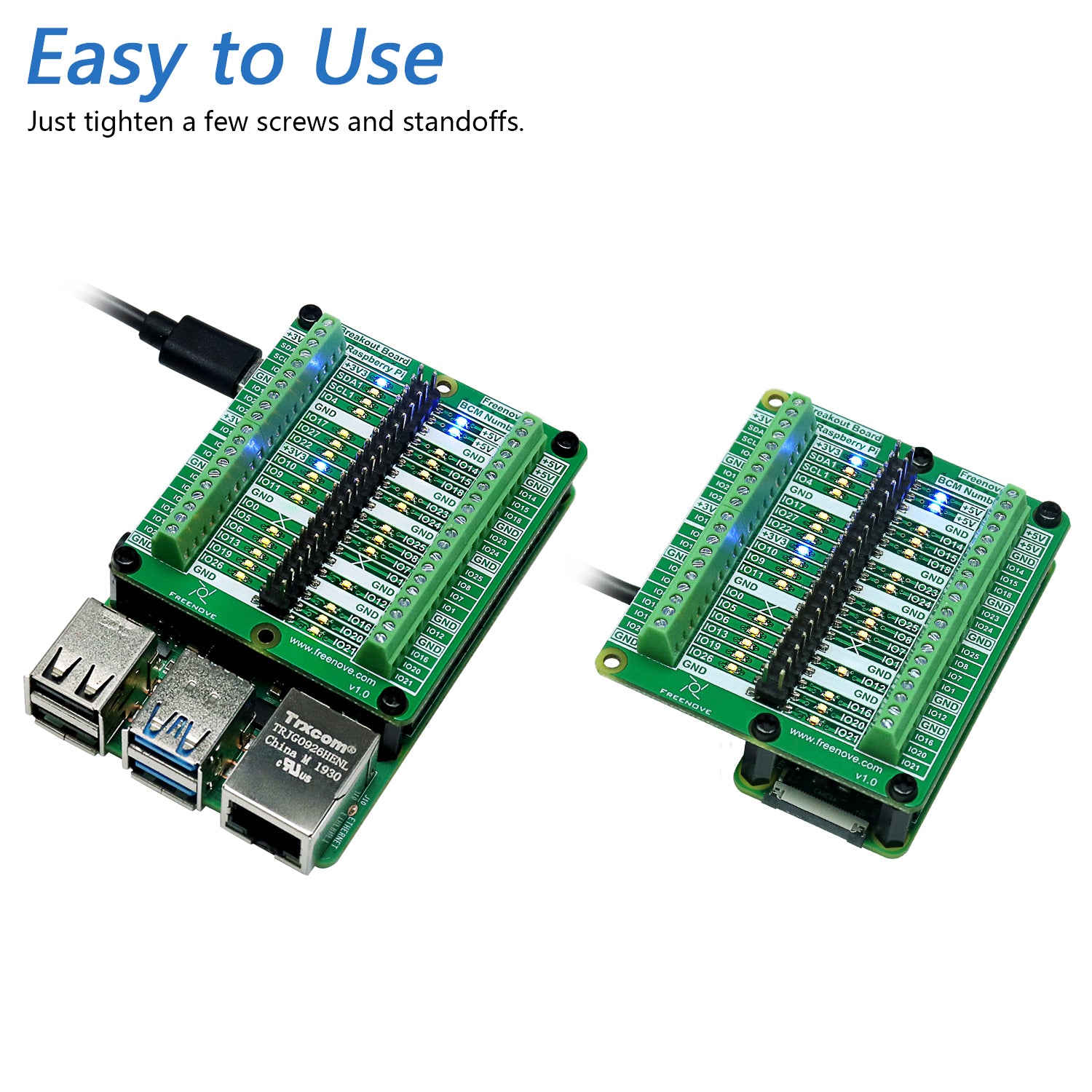

Just mount this board on your Raspberry Pi with a few screws and standoffs.
We provide free technical support to help you with any questions and problems.

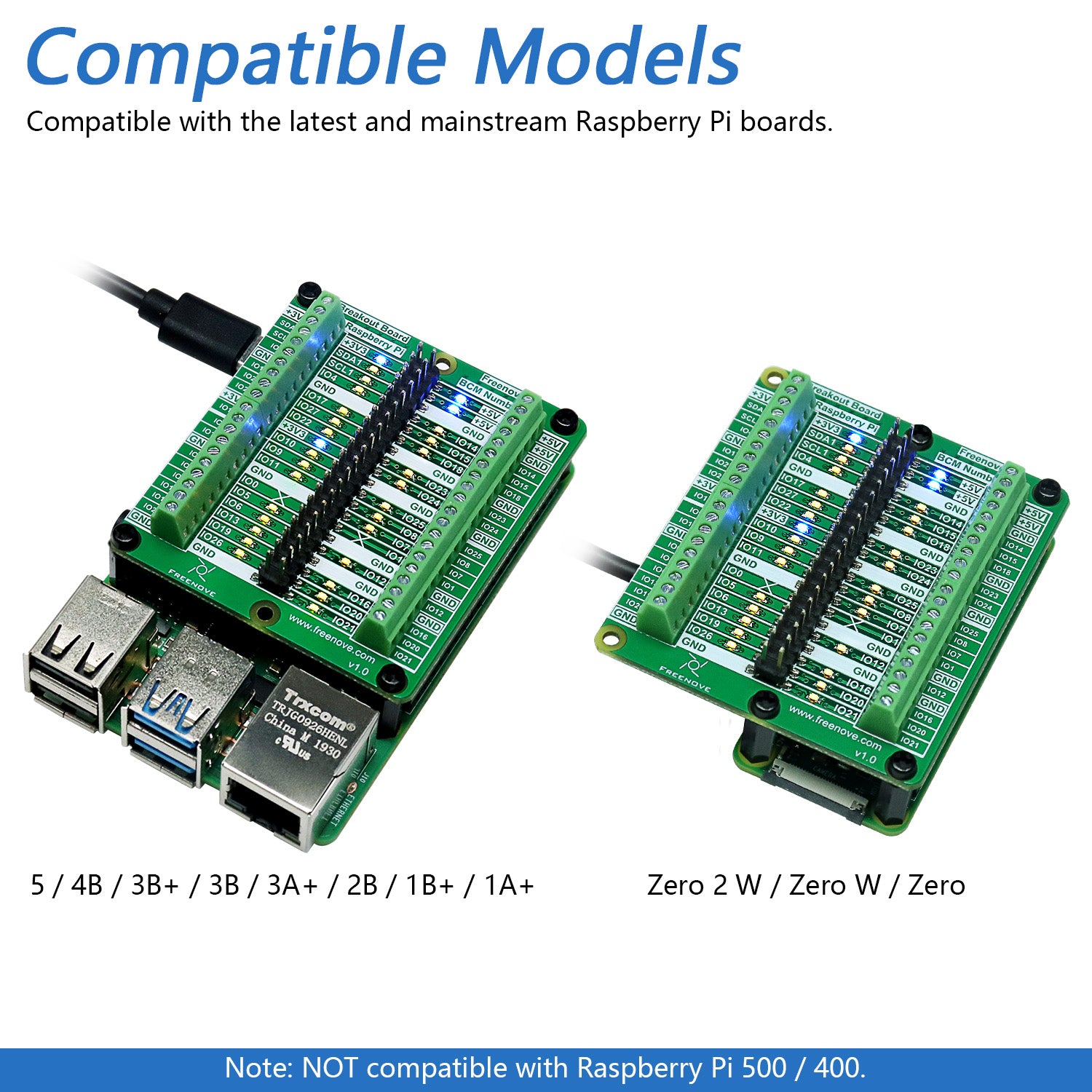

Compatible Models:
* Raspberry Pi 5 / 4B / 3B+ / 3B / 3A+ / 2B / 1B+ / 1A+ / Zero 2 W / Zero W / Zero
Note: NOT compatible with Raspberry Pi 500 / 400.
Main Features:
* Tutorial
Can be downloaded (in English) or viewed online (original in English, can be translated into other languages by browsers).
Including step-by-step guide to show how to use.
The tutorial link can be found on the product box. (No paper tutorial.)
http://freenove.com/fnk0080

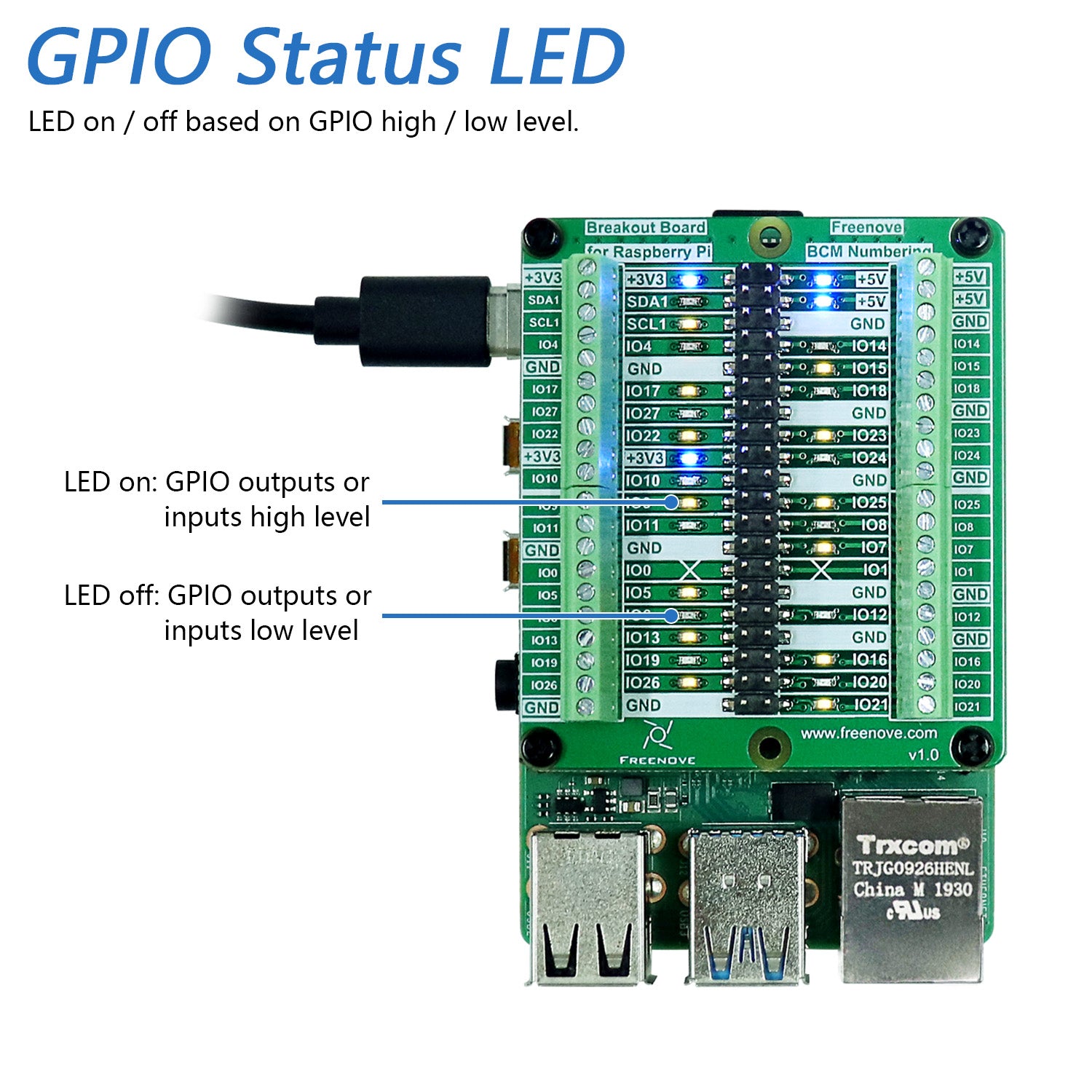

* GPIO status LED
LED on if GPIO outputs / inputs high level, LED off if GPIO outputs / inputs low level.

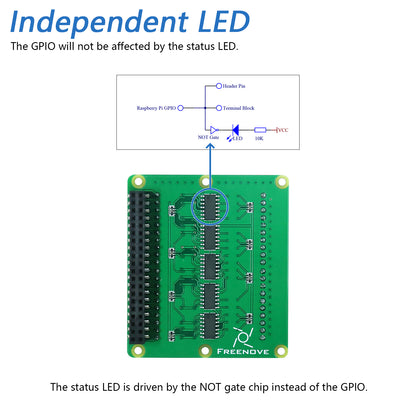

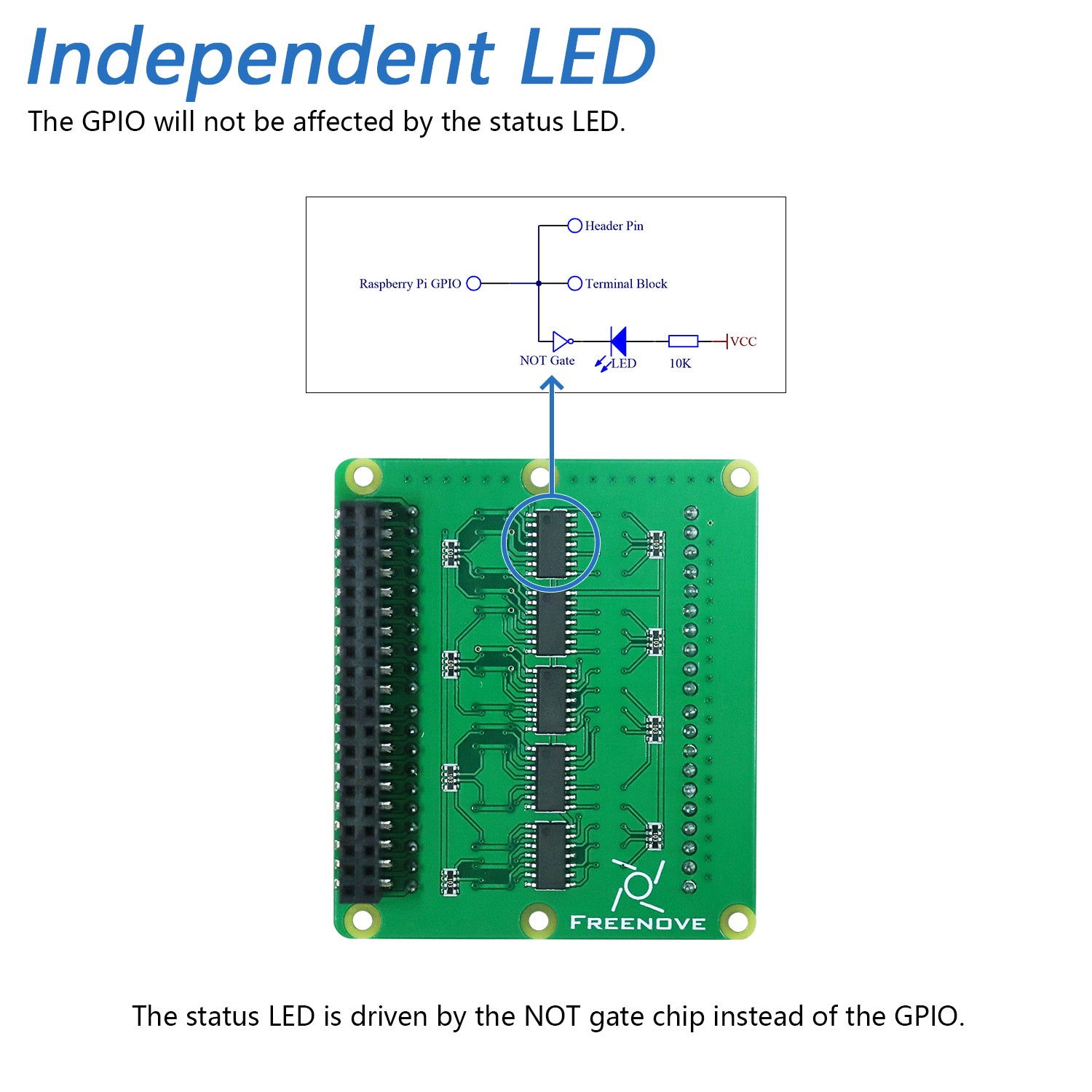

* Independent LED
The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected.

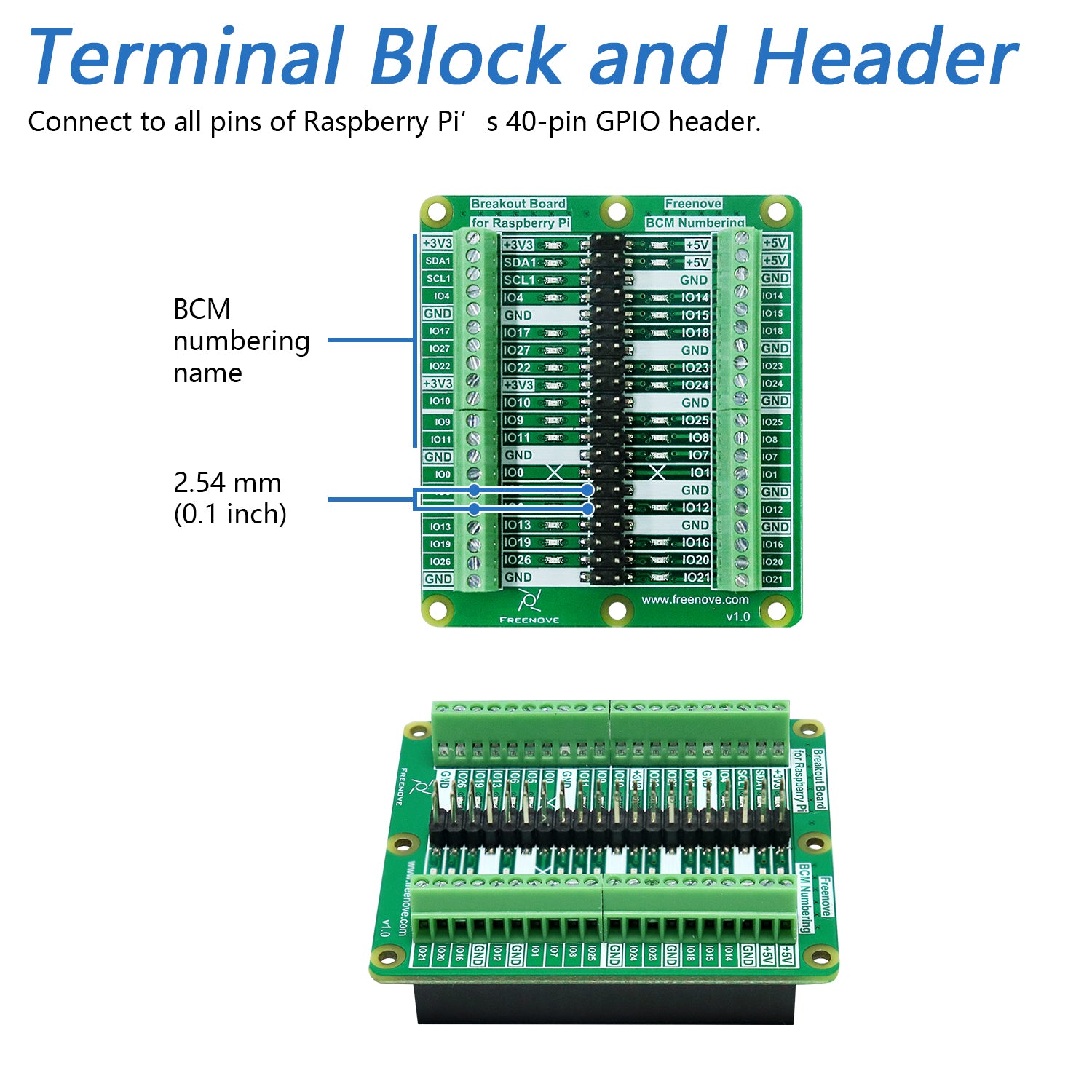

* Terminal block and header
Connect to all pins of the main board, 2.54 mm (0.1 inch) pitch.
* GPIO name
The BCM numbering name of each pin is printed next to it.

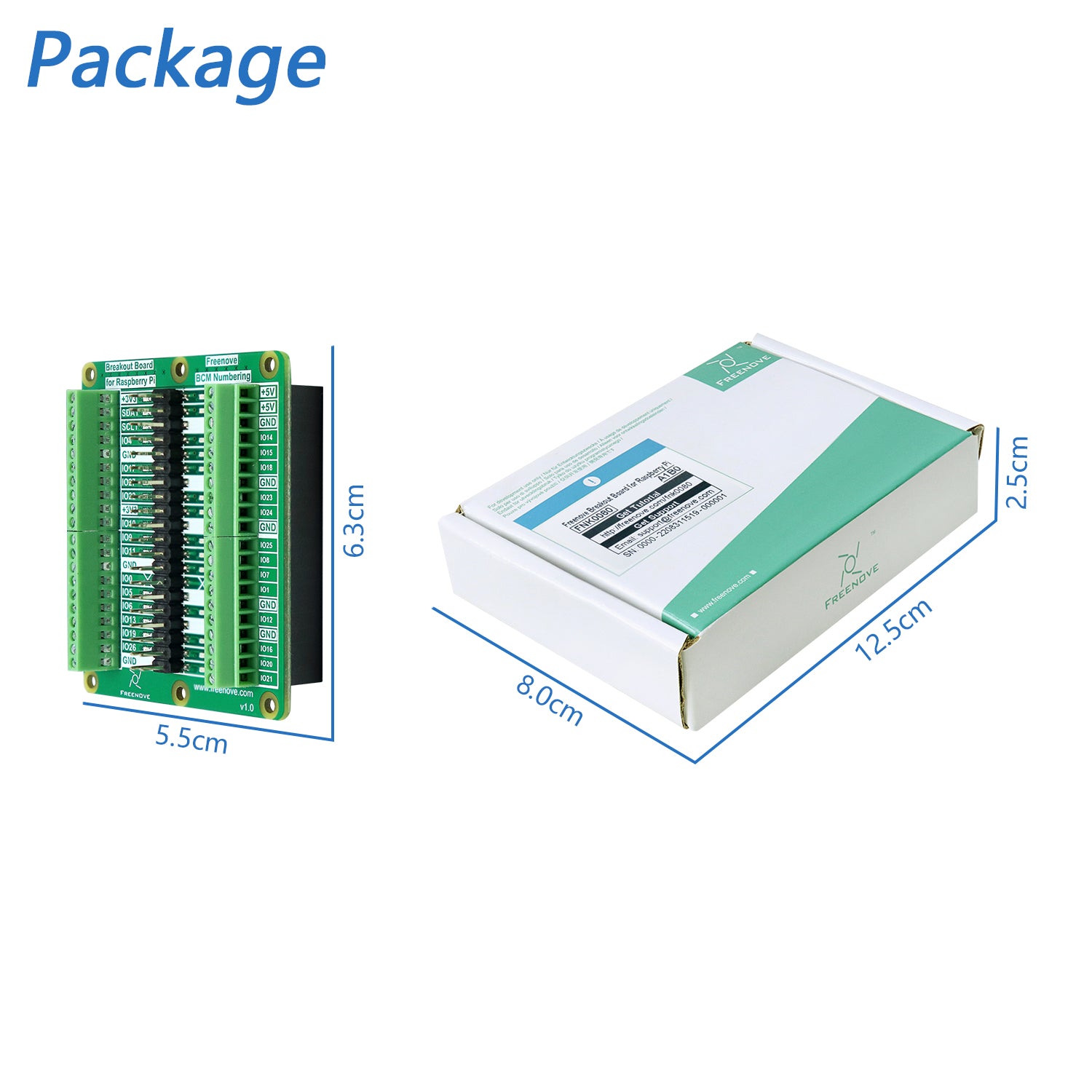

Package Includes:

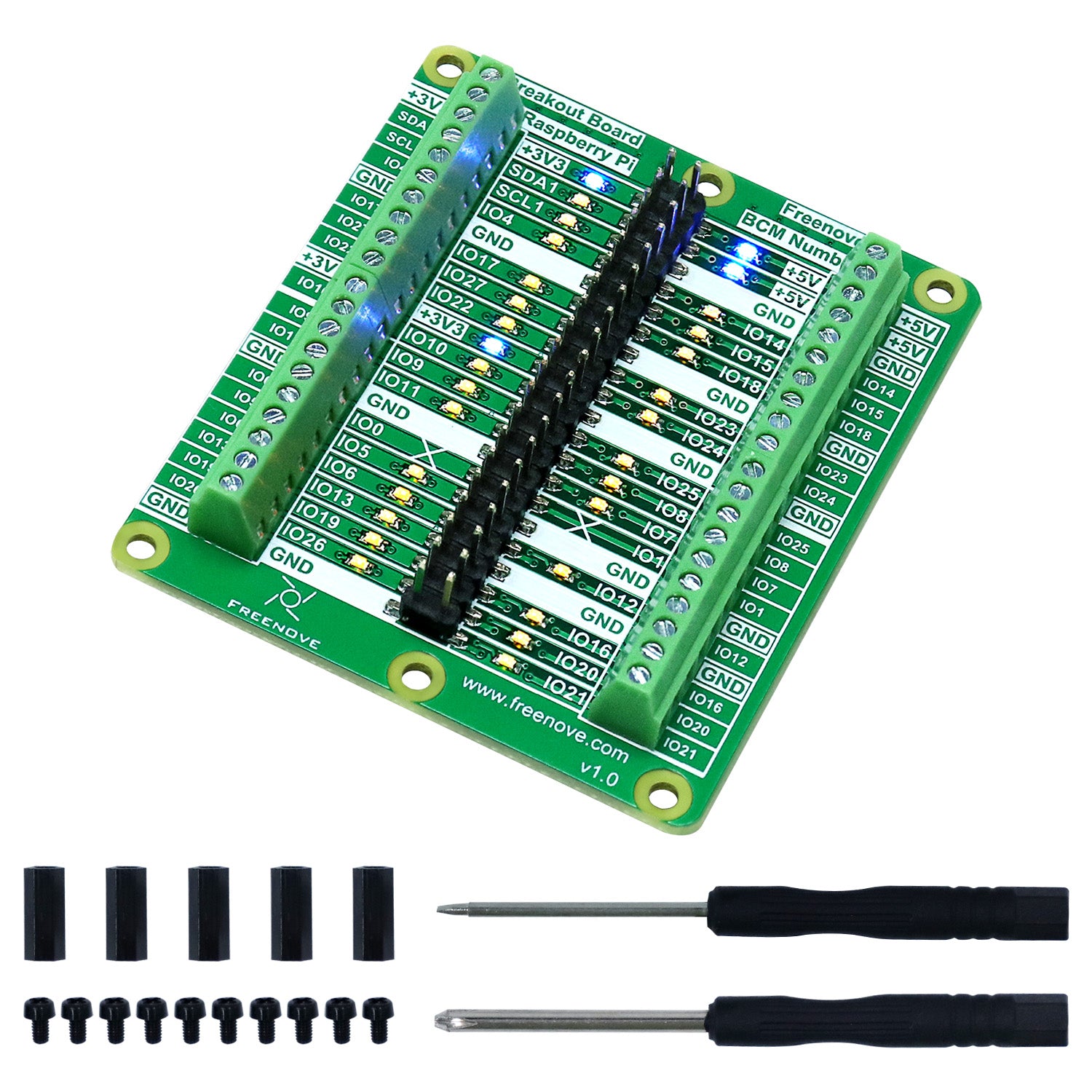

1 x Breakout board
1 x Slotted screwdriver
1 x Cross screwdriver
5 x M2.5*12 standoff
10 x M2.5*4 screw
This breakout board can help you wire and know the status of the GPIO.
Just mount this board on your Raspberry Pi with a few screws and standoffs.
We provide free technical support to help you with any questions and problems.
Compatible Models:
* Raspberry Pi 5 / 4B / 3B+ / 3B / 3A+ / 2B / 1B+ / 1A+ / Zero 2 W / Zero W / Zero
Note: NOT compatible with Raspberry Pi 500 / 400.
Main Features:
* Tutorial
Can be downloaded (in English) or viewed online (original in English, can be translated into other languages by browsers).
Including step-by-step guide to show how to use.
The tutorial link can be found on the product box. (No paper tutorial.)
http://freenove.com/fnk0080
* GPIO status LED
LED on if GPIO outputs / inputs high level, LED off if GPIO outputs / inputs low level.
* Independent LED
The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected.
* Terminal block and header
Connect to all pins of the main board, 2.54 mm (0.1 inch) pitch.
* GPIO name
The BCM numbering name of each pin is printed next to it.
Package Includes:
1 x Breakout board
1 x Slotted screwdriver
1 x Cross screwdriver
5 x M2.5*12 standoff
10 x M2.5*4 screw
