Freenove Breakout Board for ESP32 ESP32-S3, Terminal Block Shield HAT with Pin Header, GPIO Status LED, Multiple 5V 3.3V Power Outputs

Overview:

This breakout board can help you wire and know the status of the GPIO.
Just plug Freenove ESP32 / ESP32-S3 into this board to complete the installation.

We provide free technical support to help you with any questions and problems.

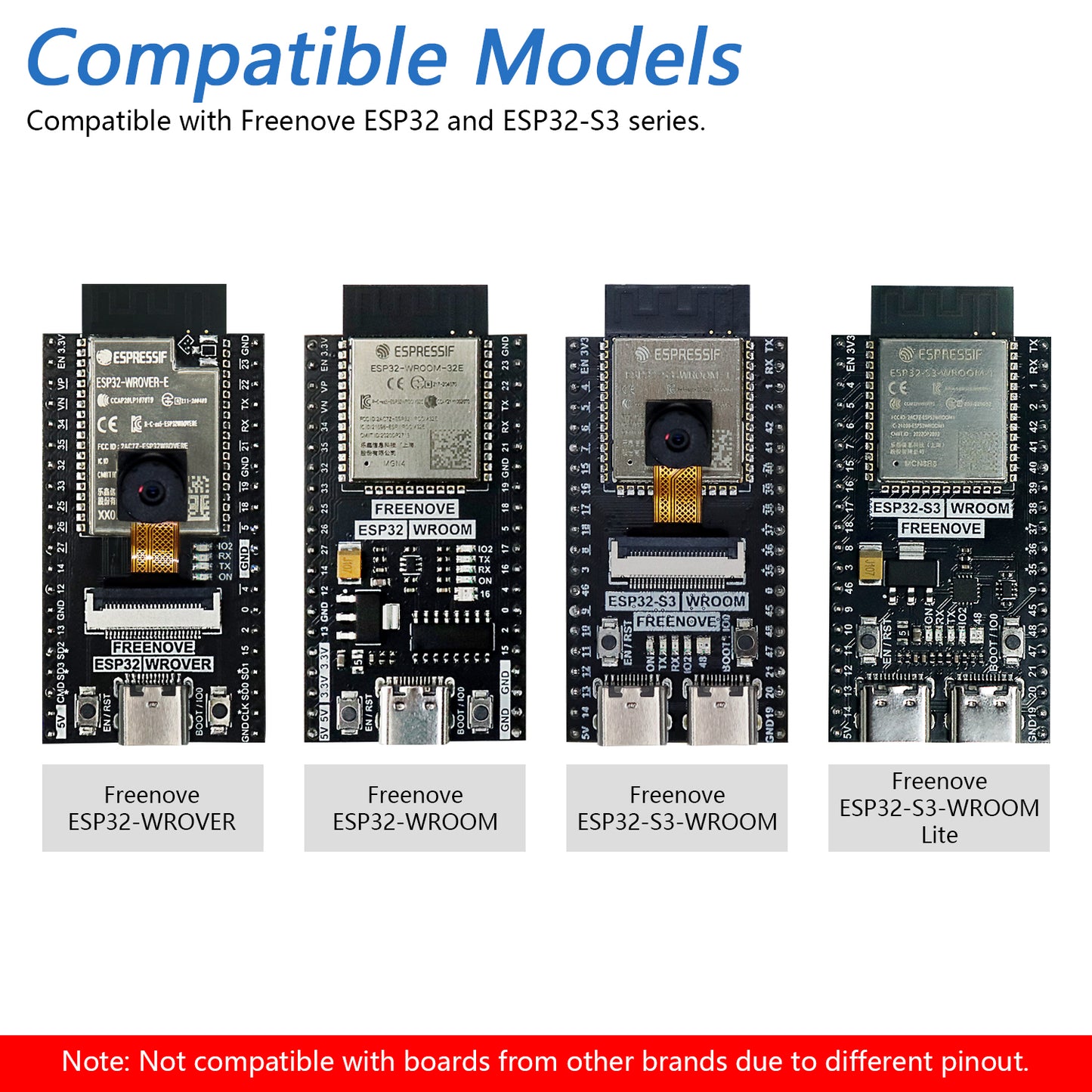

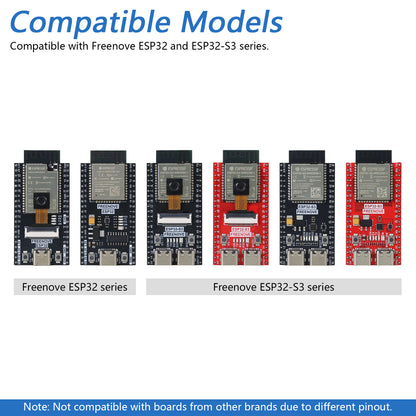

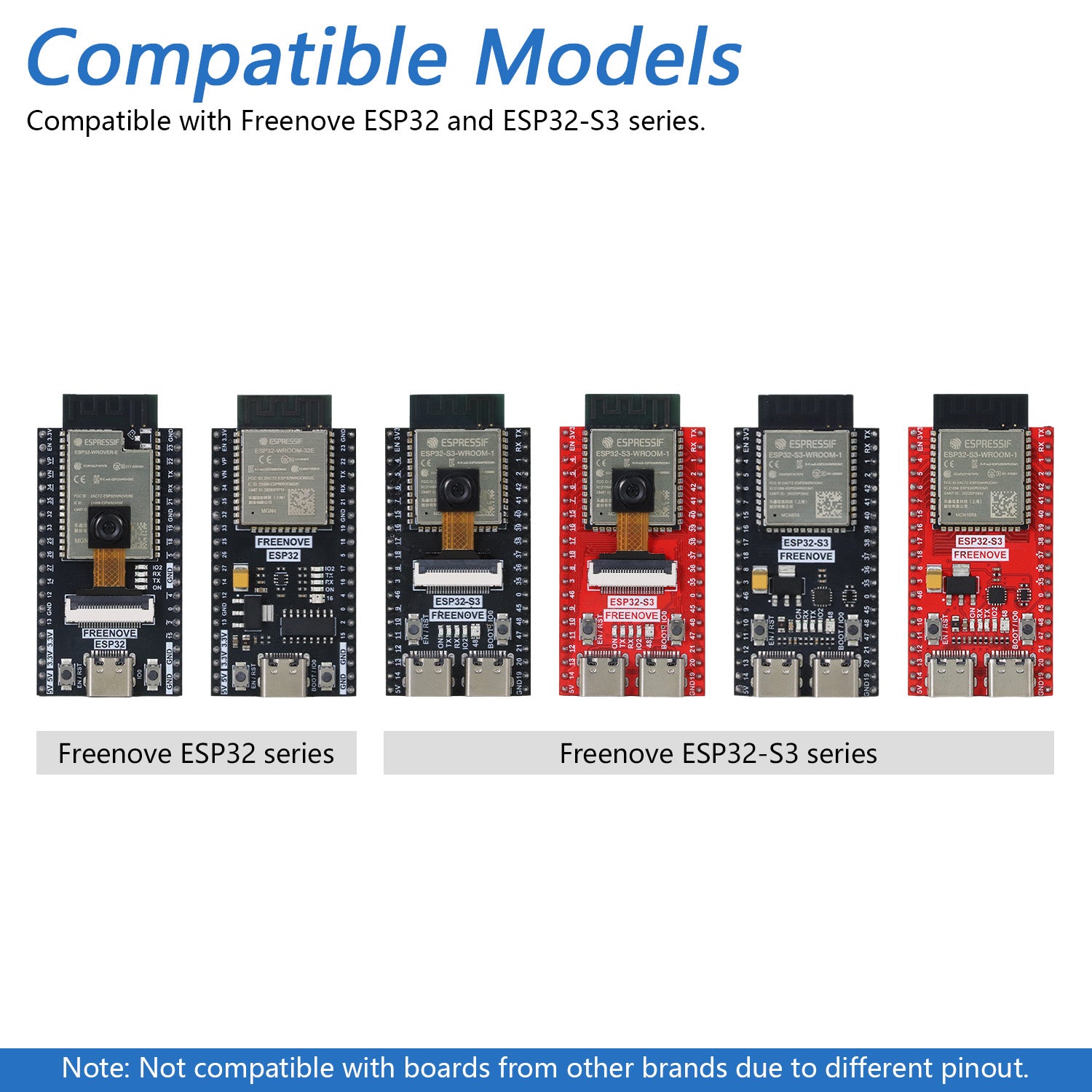

Compatible Models:

* Freenove ESP32 series boards
* Freenove ESP32-S3 series boards

Note: NOT compatible with boards from other brands due to different pinout.

Main Features:

* Tutorial
  Can be downloaded (in English) or viewed online (original in English, can be translated into other languages by browsers).
  Including step-by-step guide to show how to use.

  The tutorial link can be found on the product box. (No paper tutorial.)

  http://freenove.com/fnk0091

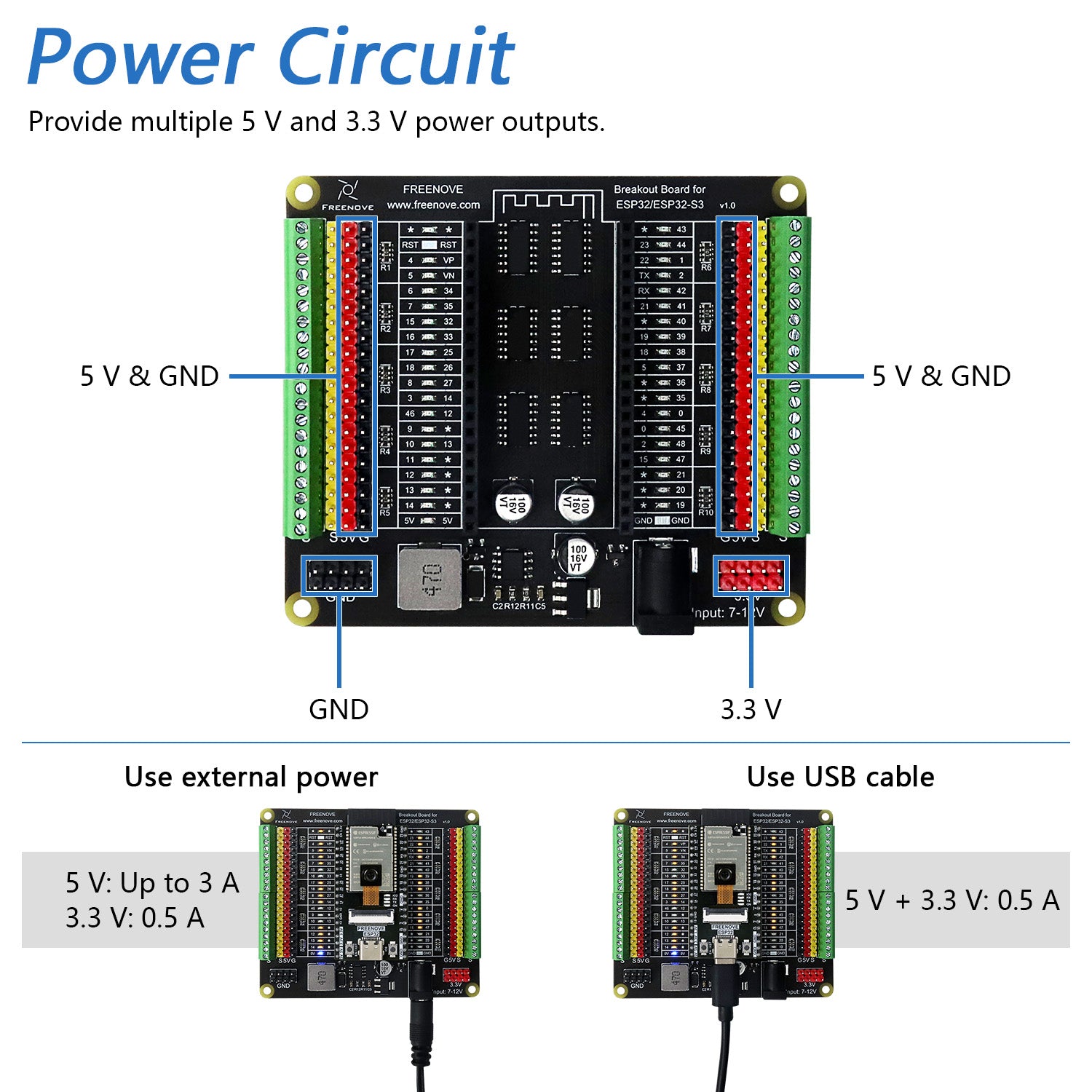

* Power supply
  Provide multiple 5 V and 3.3 V power outputs, 5 V output up to 3 A if connected to an external power supply.

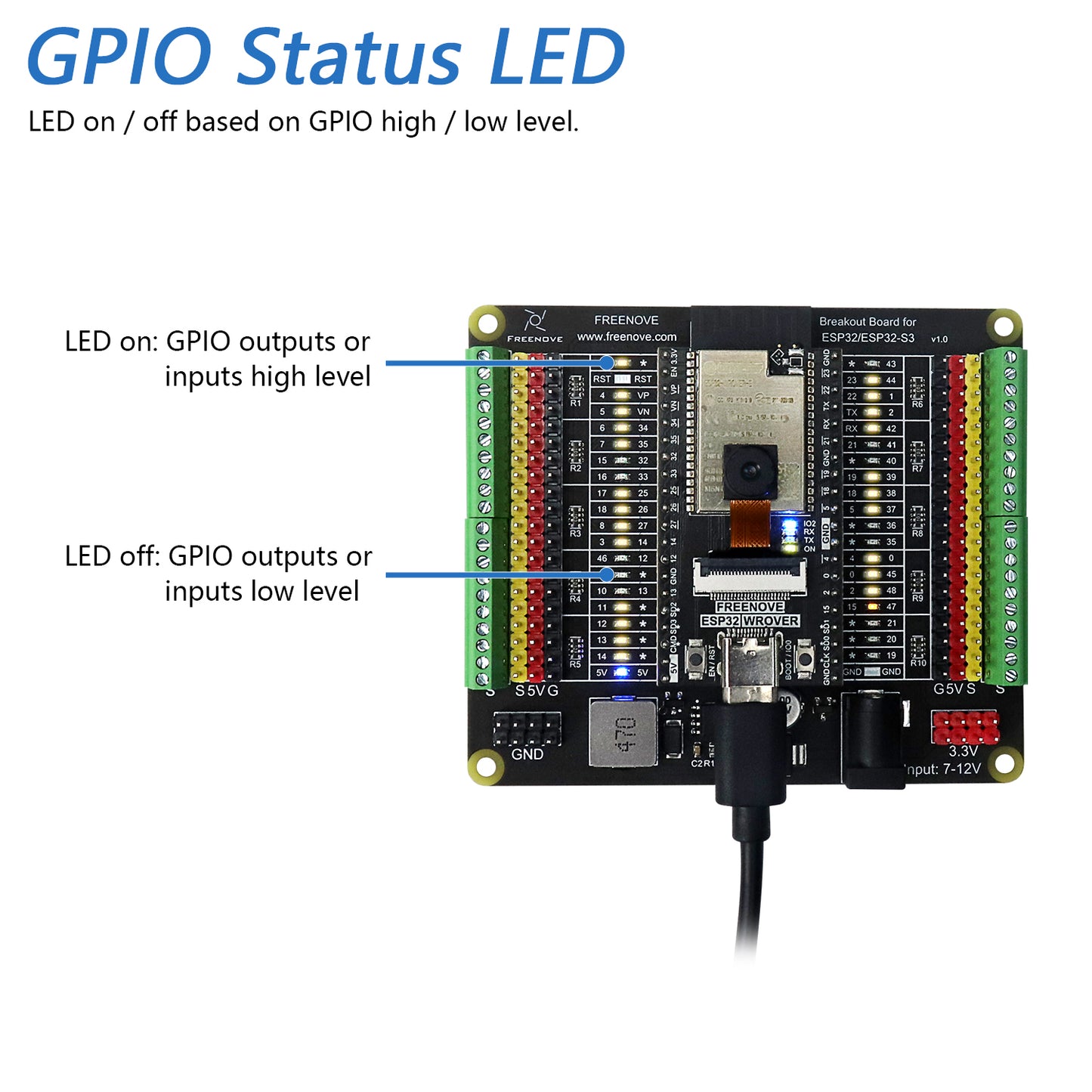

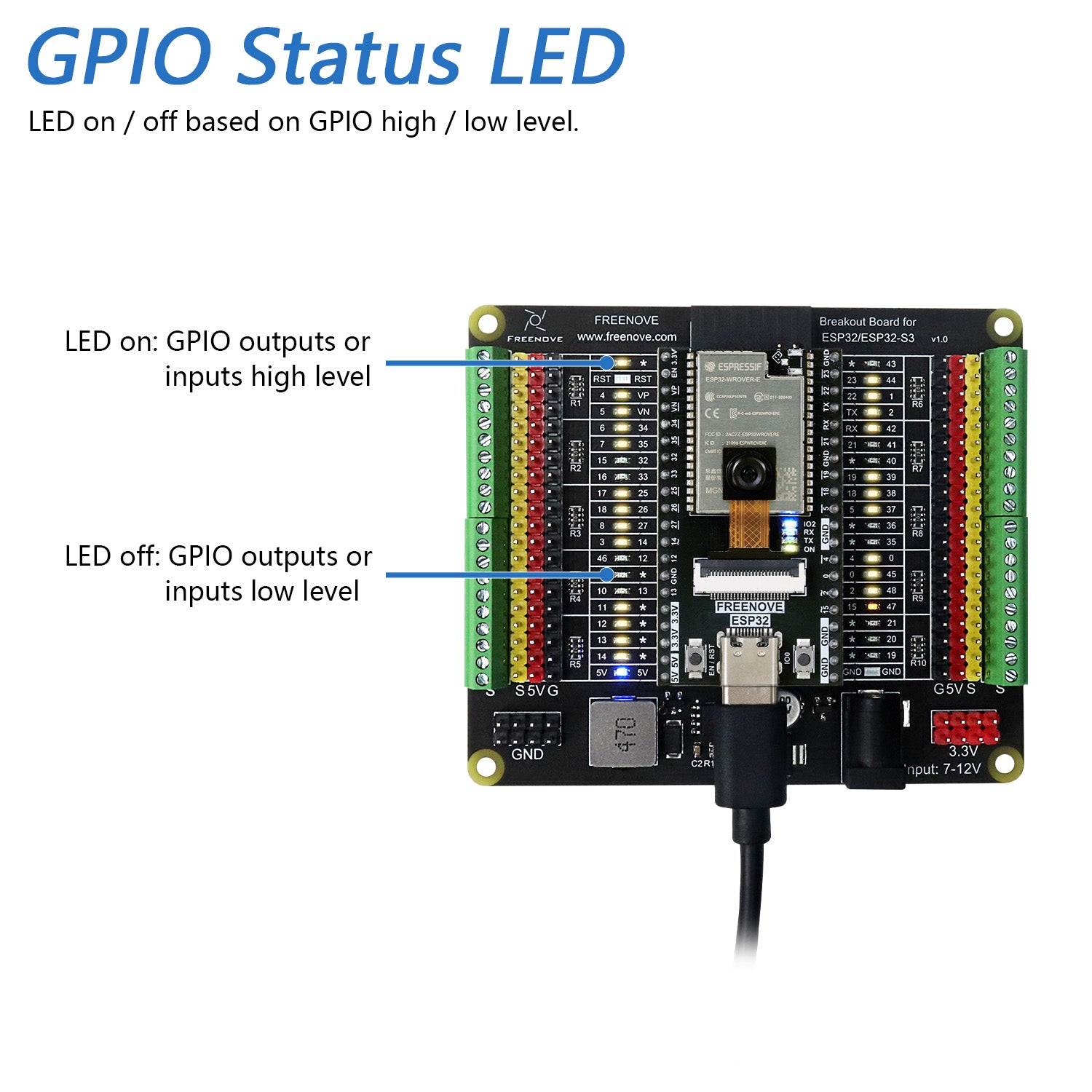

* GPIO status LED
  LED on if GPIO outputs / inputs high level, LED off if GPIO outputs / inputs low level.

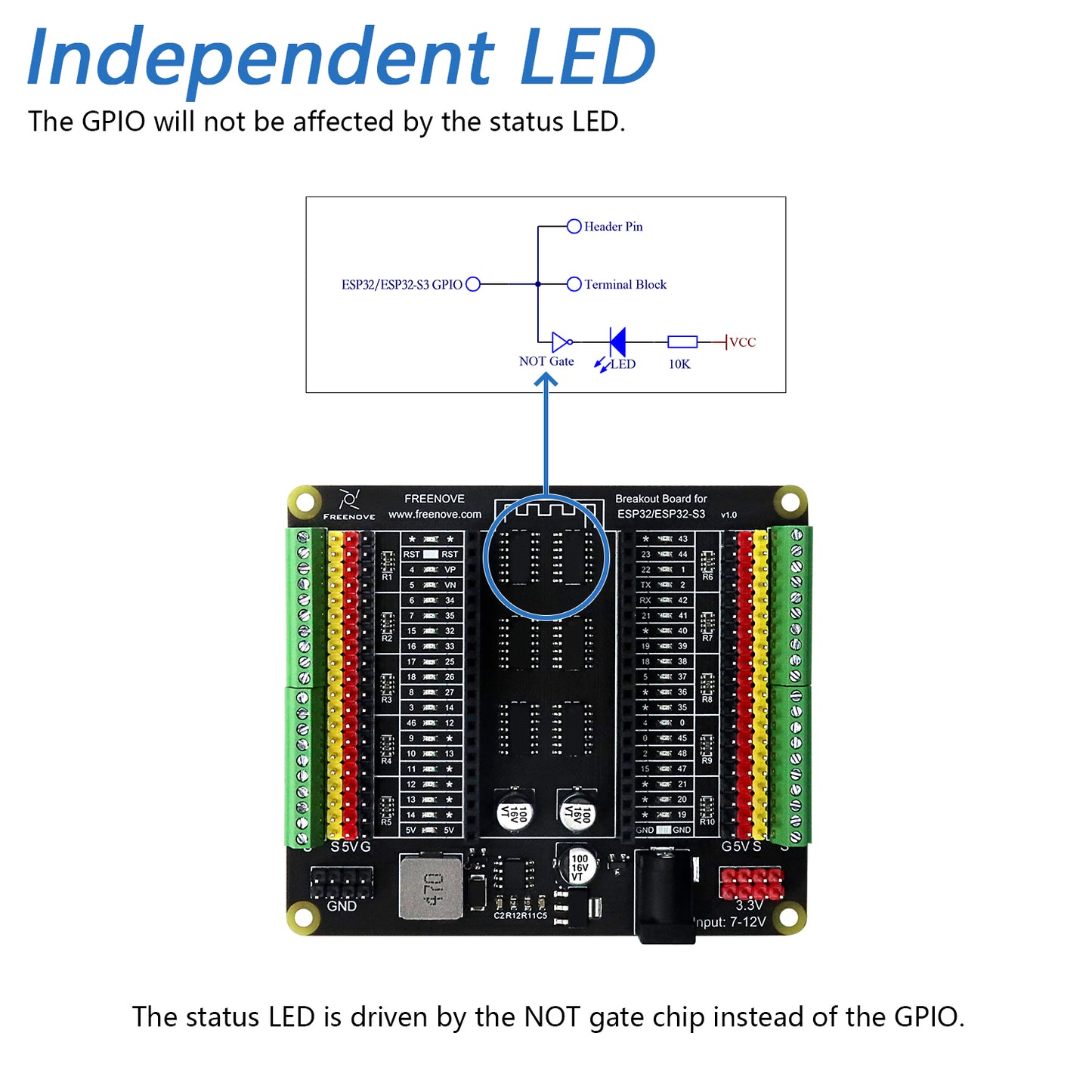

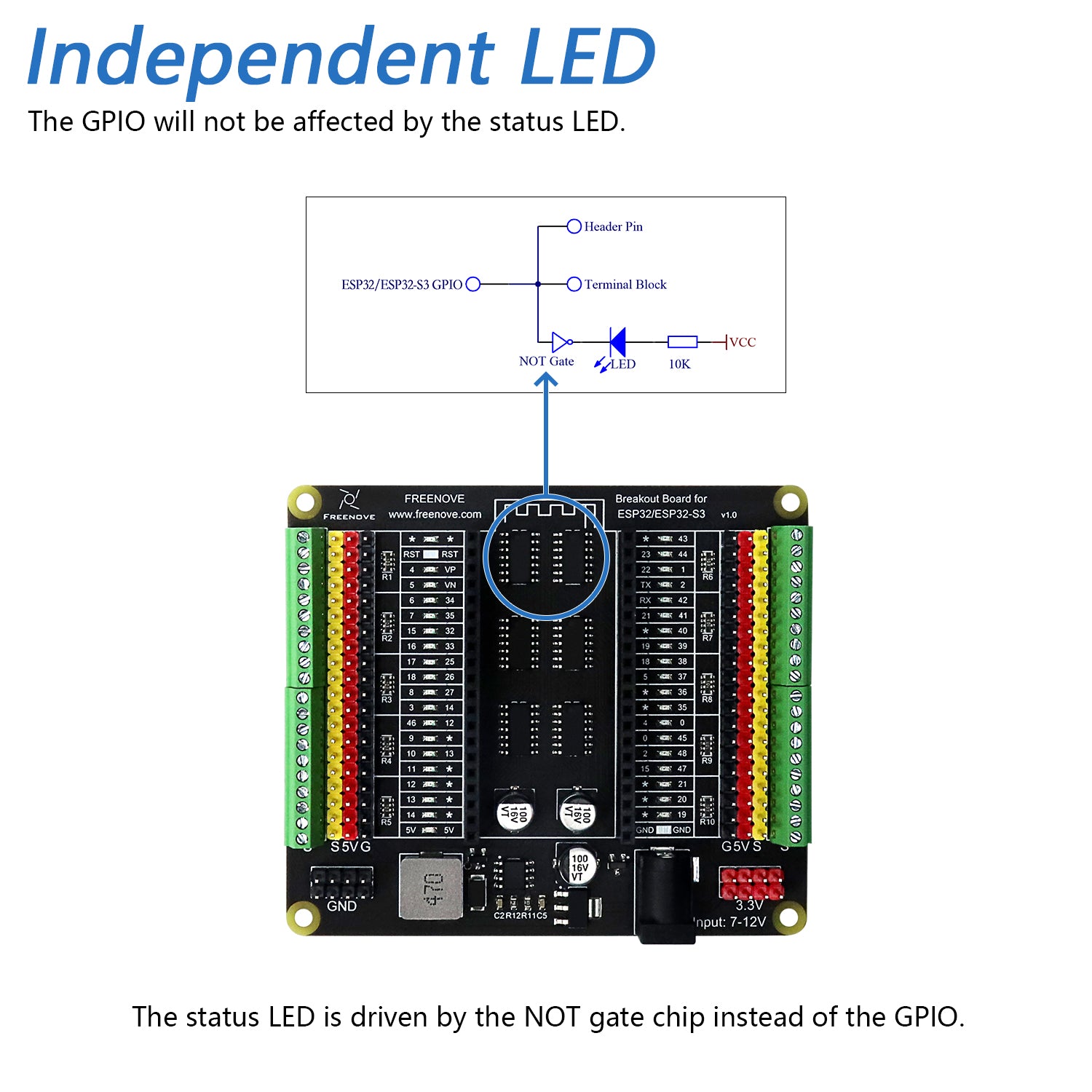

* Independent LED
  The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected.

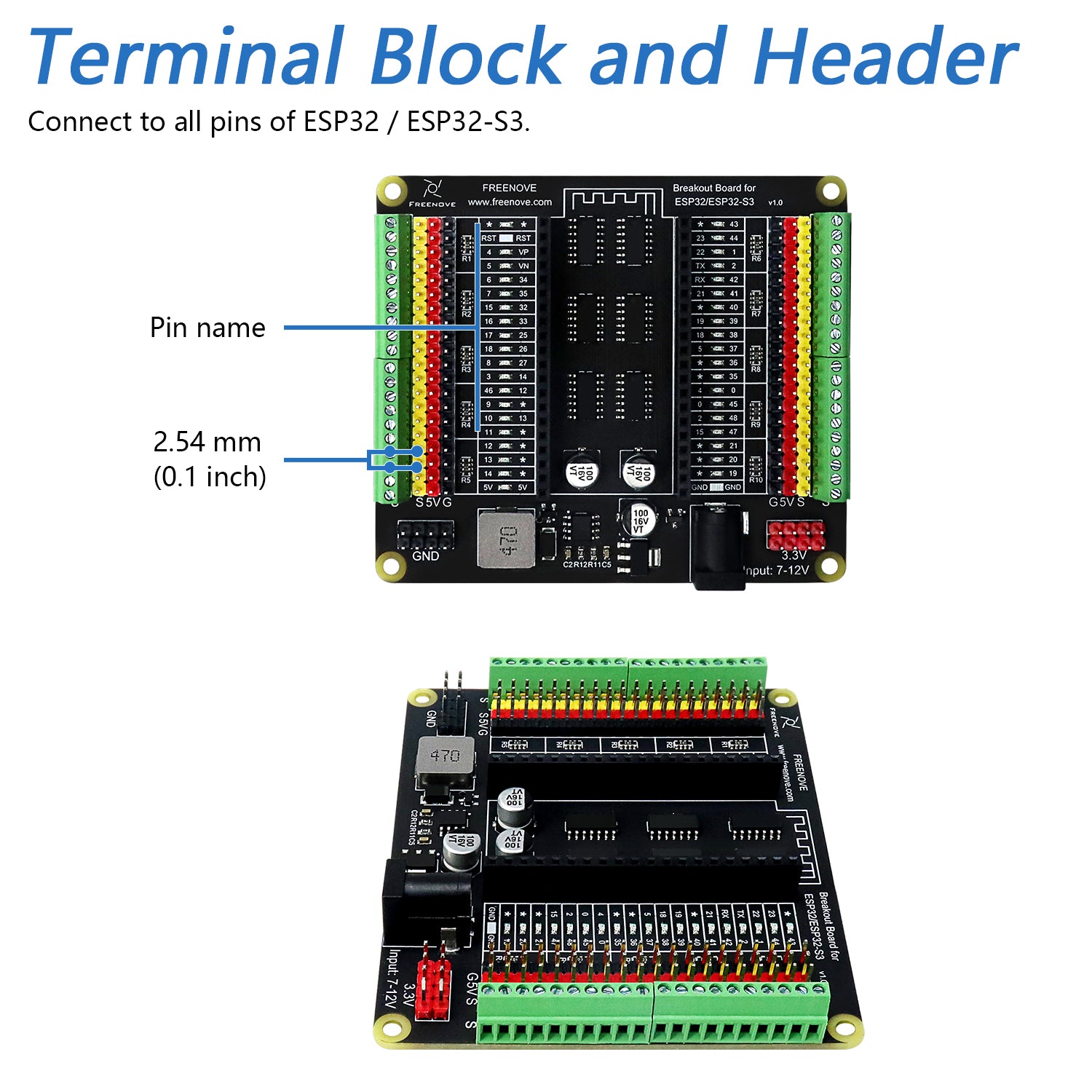

* Terminal block and header
  Connect to all pins of the main board, 2.54 mm (0.1 inch) pitch.

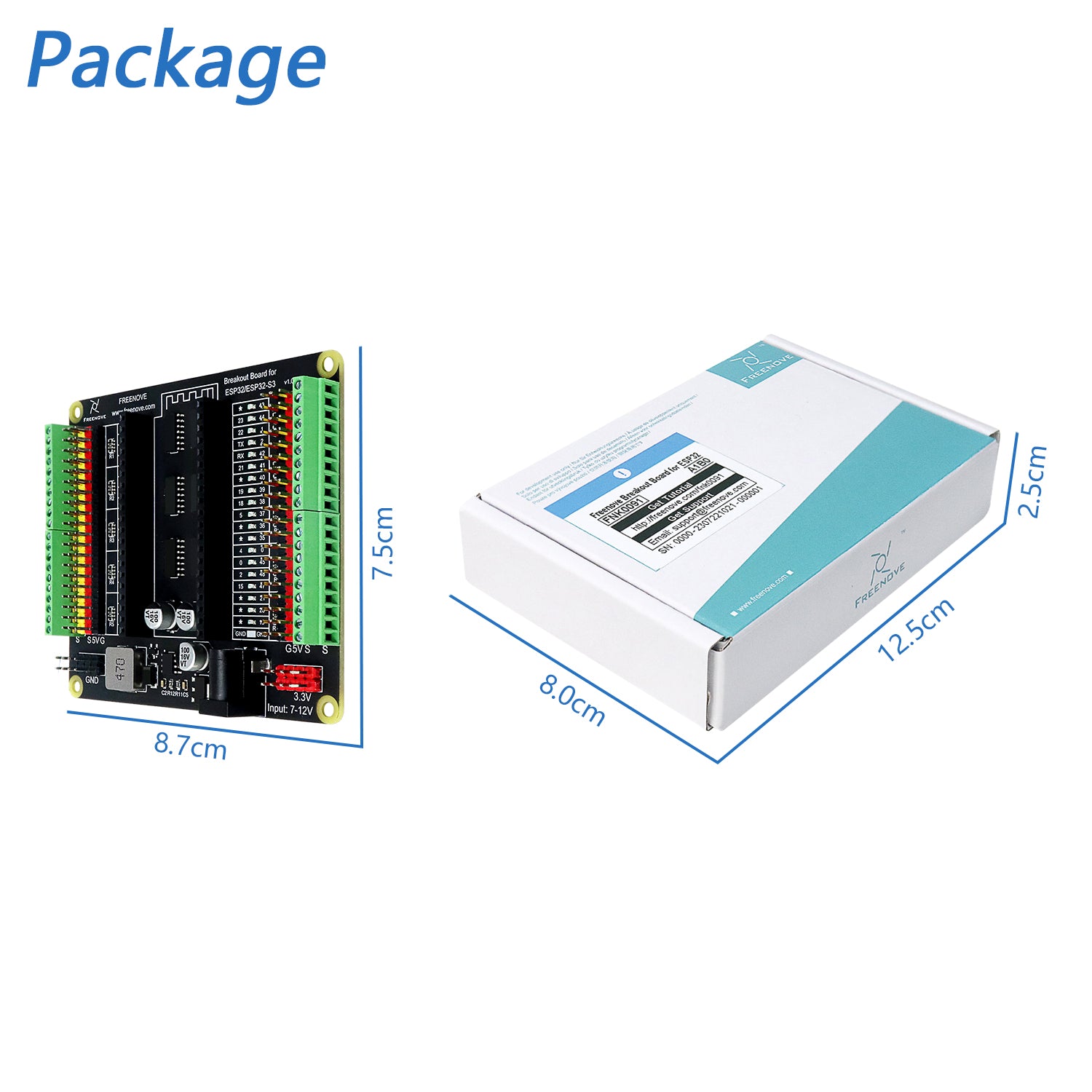

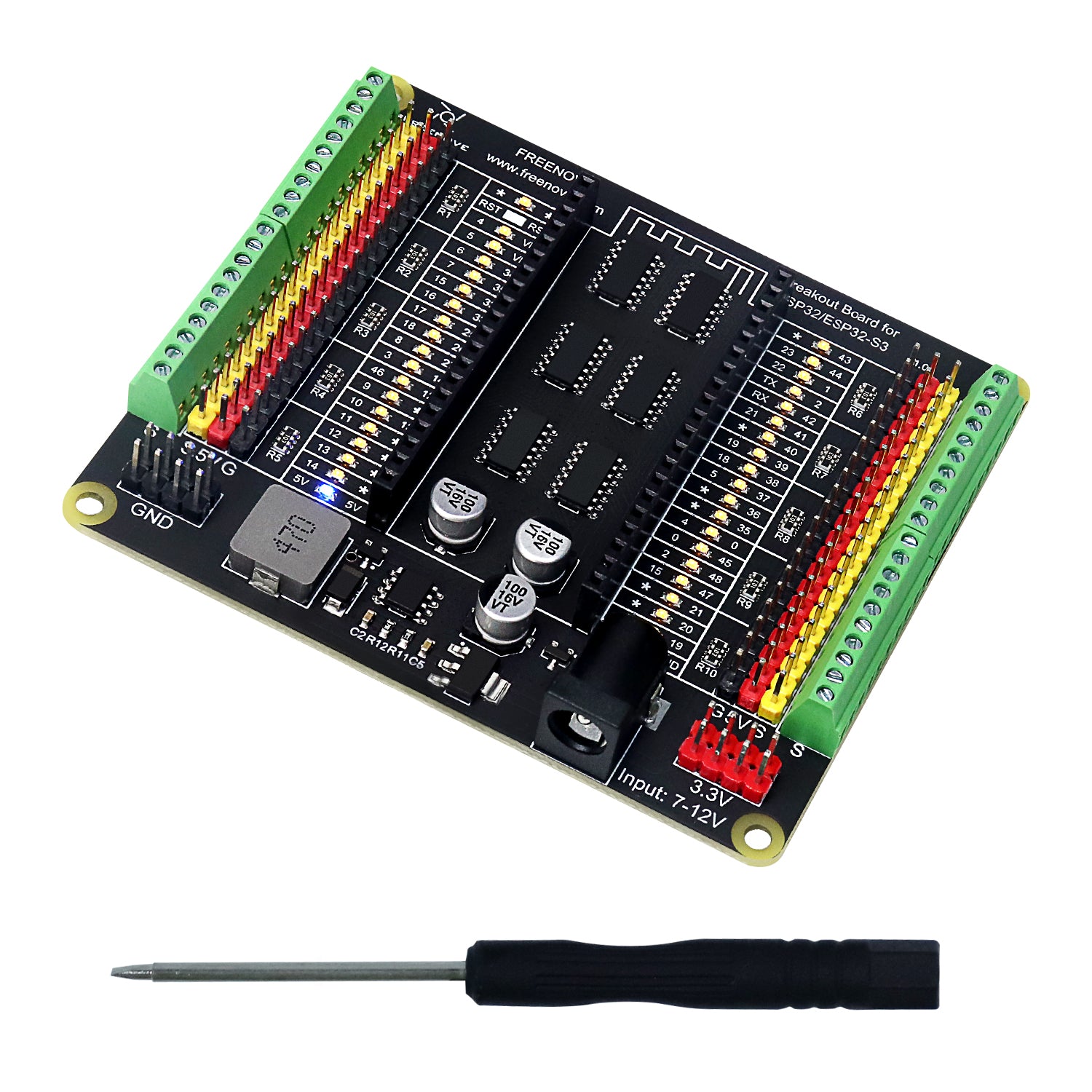

Package Includes:

1 x Breakout board
1 x Slotted screwdriver
