SKU:FNK0096A

Freenove Control Board V5 Rev4 WiFi Mini (Compatible with Arduino IDE)

Freenove Control Board V5 Rev4 WiFi Mini (Compatible with Arduino IDE)

Options
Regular price $19.99 USD
Regular price Sale price $19.99 USD
Sale Sold out
Shipping calculated at checkout. Please check the shipping policy before placing an order.

In stock

View full details
Description
Purchase Options:

This product has different versions.

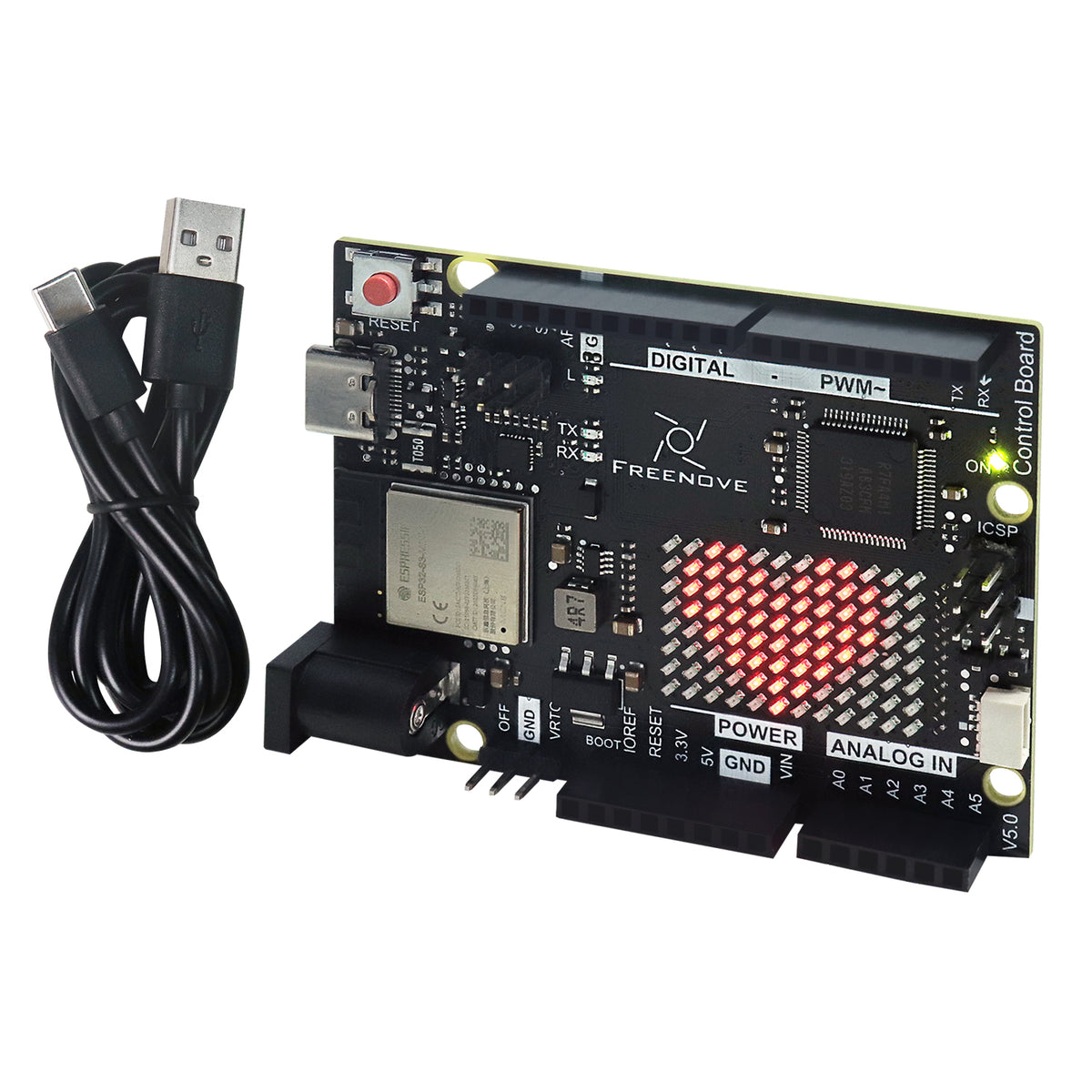

V5 WiFi has onboard ESP32-S3 module and 12x8 red LED matrix, V5 Mini does not.

Overview:

Enhanced and improved, this latest upgraded board is armed with a powerful 32-bit microcontroller.
Brace yourself for increased processing power, expanded memory, and a whole new level of on-board peripherals.

We provide free technical support to help you with any questions and problems.

Main Features:

* Latest version
  Upgrade to Arm Cortex-M4 Microcontroller with 48 MHz main core clock speed, 256 kB Flash and 32 kB RAM.

* Compatibility
  Blue Rev4 board: fully compatible. Blue Rev3 board: some code and libraries may not be compatible.

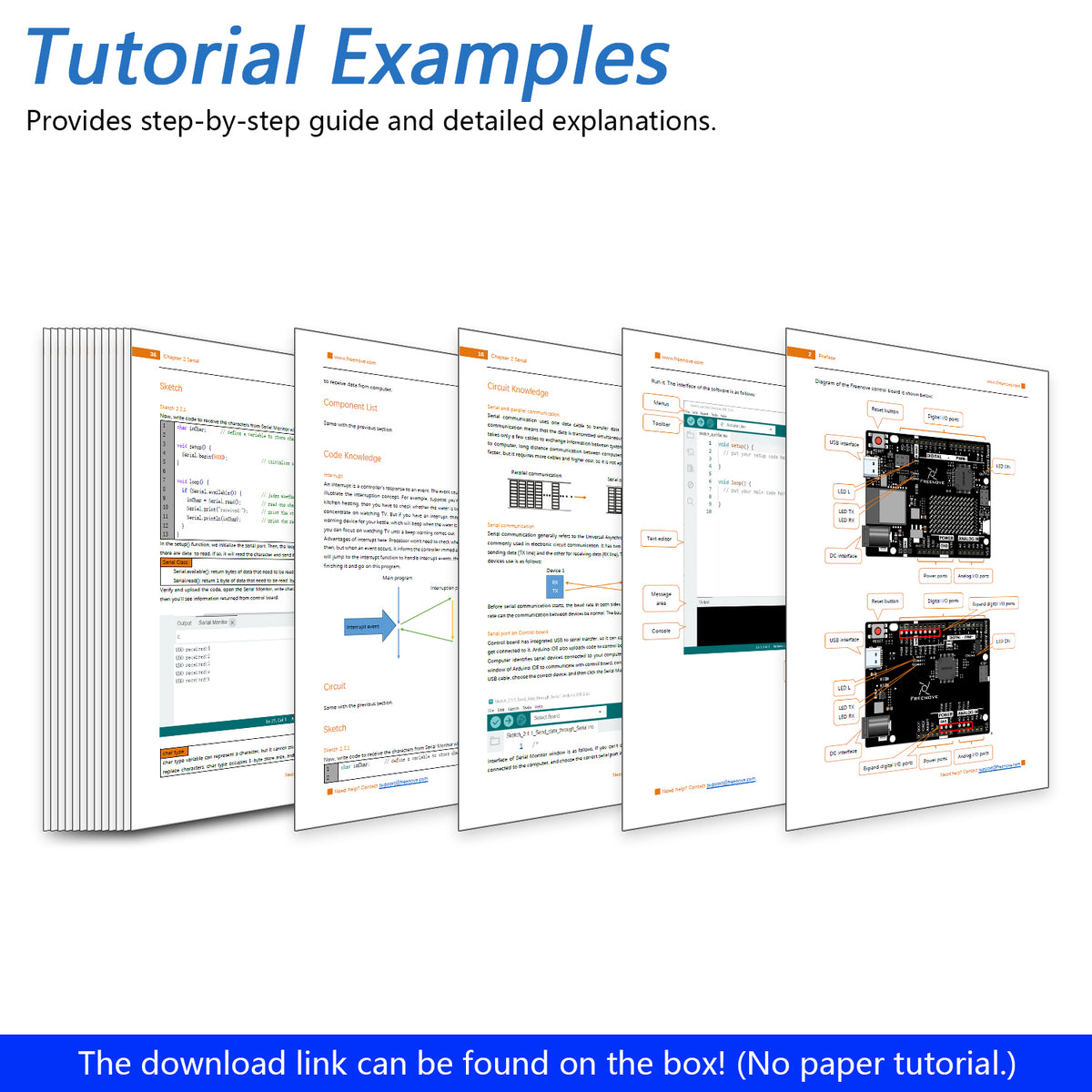

* Detailed tutorial
  Comes with detailed tutorial and complete code. (Download needed, no paper tutorial.)

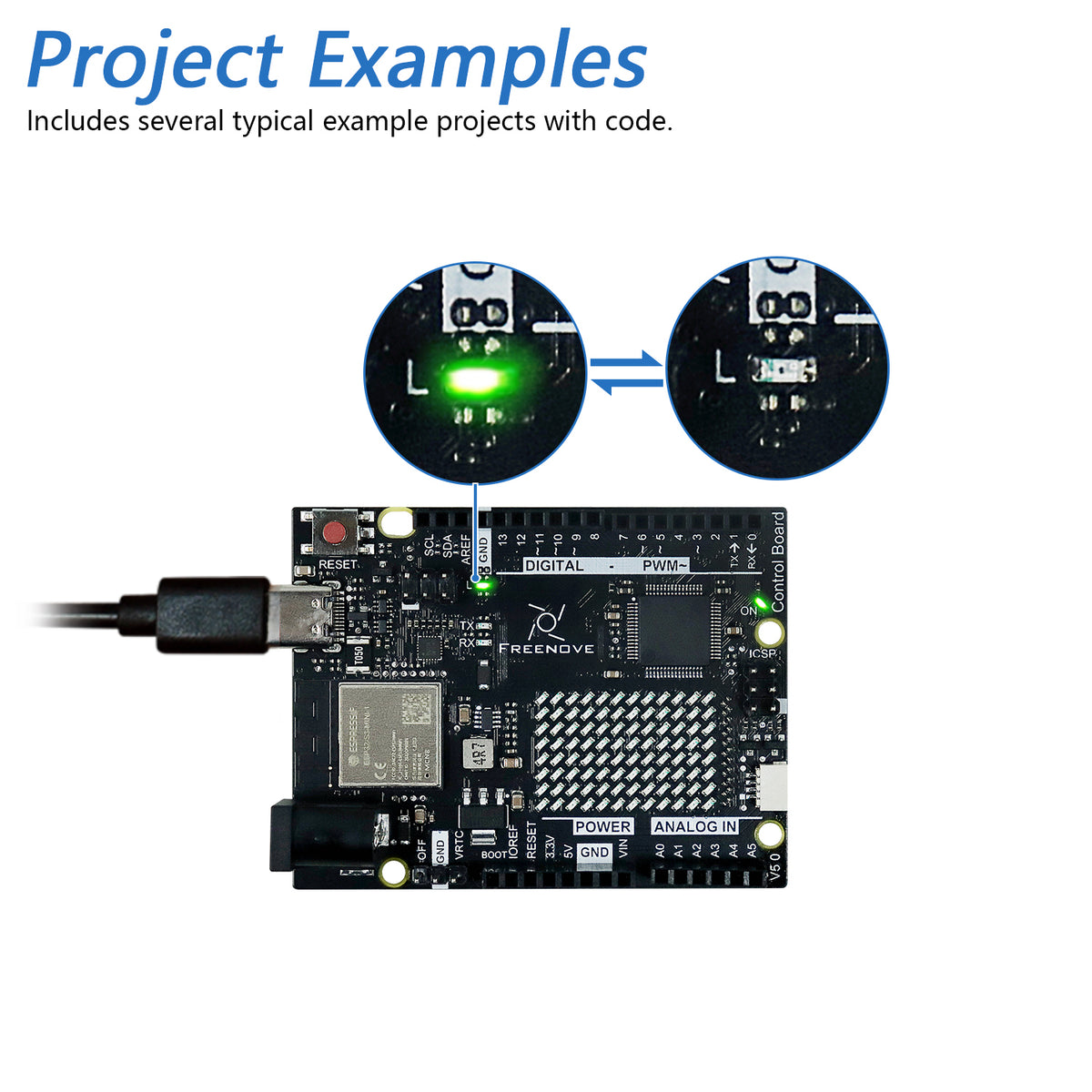

  Including several typical projects with code and explanations.
  You can download them before purchasing:

http://freenove.com/fnk0096

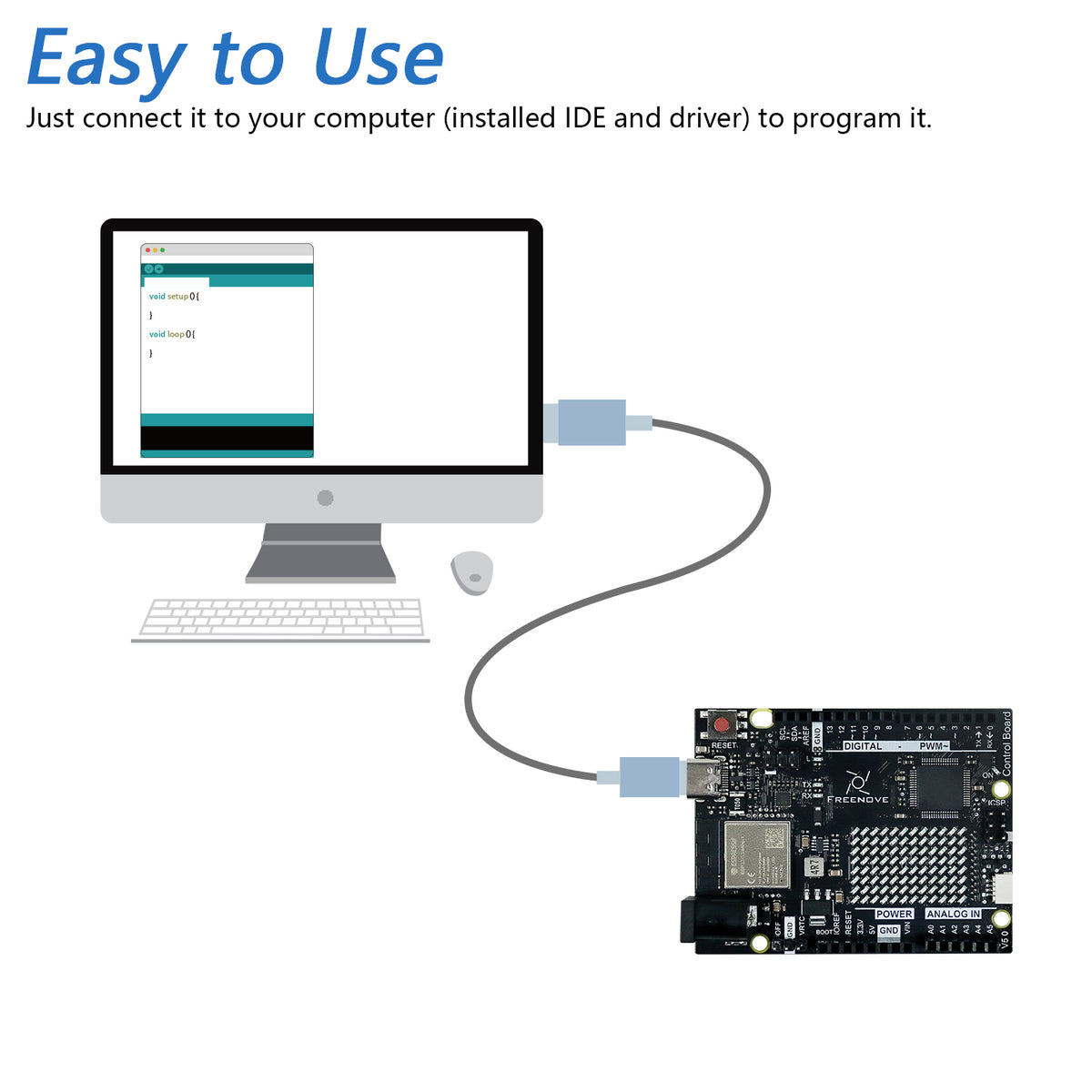

* Easy to use
  Just connect it to your computer (installed IDE and driver) with a USB cable to program it.

* Get support
  Our technical service team is always ready to answer your questions.

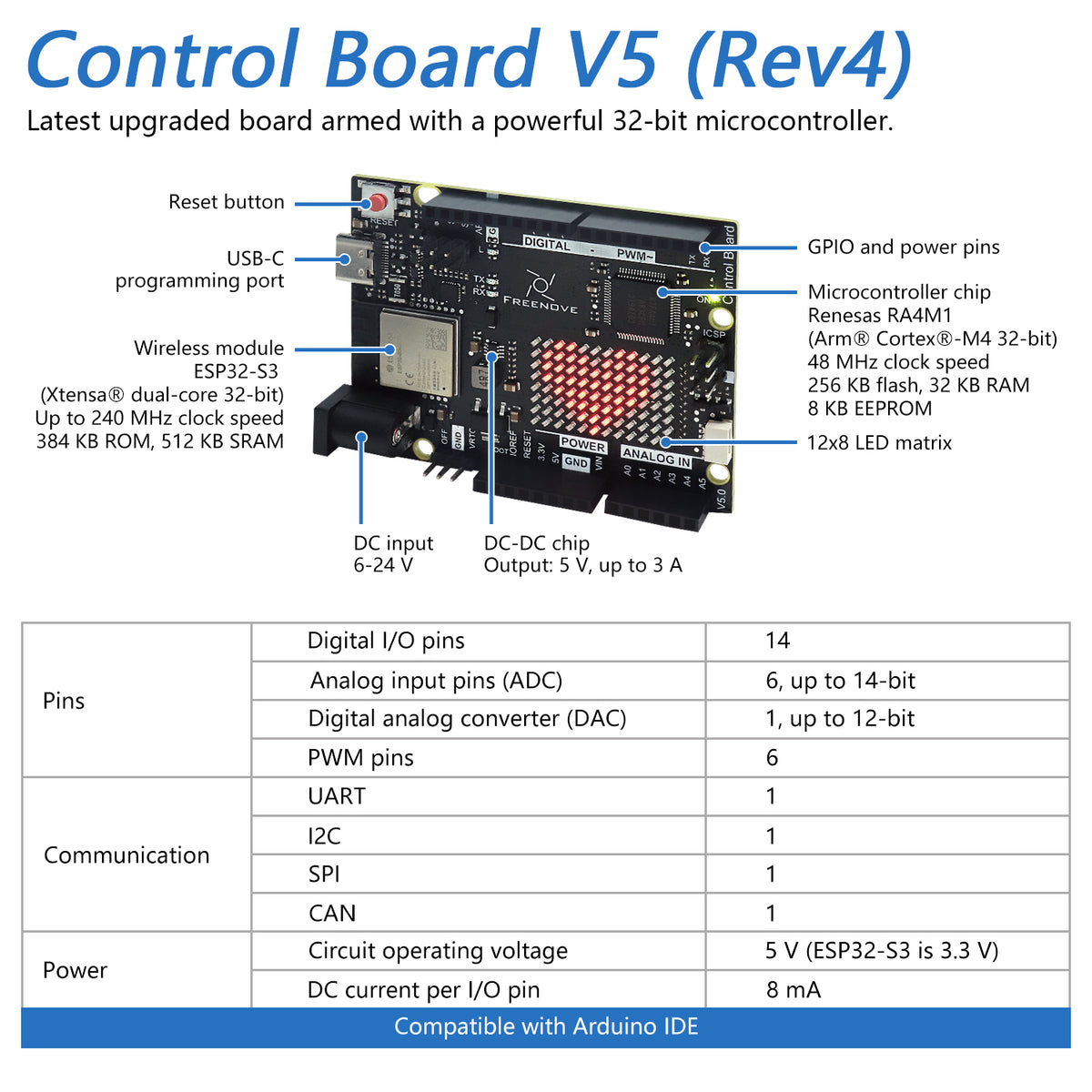

Technical Specifications:

It includes everything needed to support the microcontroller; simply connect it to a computer with a USB cable to get started.
* Note: Only V5 WiFi has onboard ESP32-S3 module.

Microcontroller Renesas RA4M1 (Arm Cortex-M4)
Pins Digital I/O Pins 14
Analog input pins 6
DAC 1
PWM pins 6
Communication UART 1
I2C 1
SPI 1
CAN 1
Power Circuit operating voltage 5 V (ESP32-S3 is 3.3 V)
Input voltage (VIN) 6-24 V
DC Current per I/O Pin 8 mA
Clock speed Main core 48 MHz
ESP32-S3 up to 240 MHz
Memory Main core 256 kB Flash, 32 kB RAM
ESP32-S3 384 kB ROM, 512 kB SRAM
Dimensions Width 68.85 mm
Weight 53.34 mm

Package Includes:

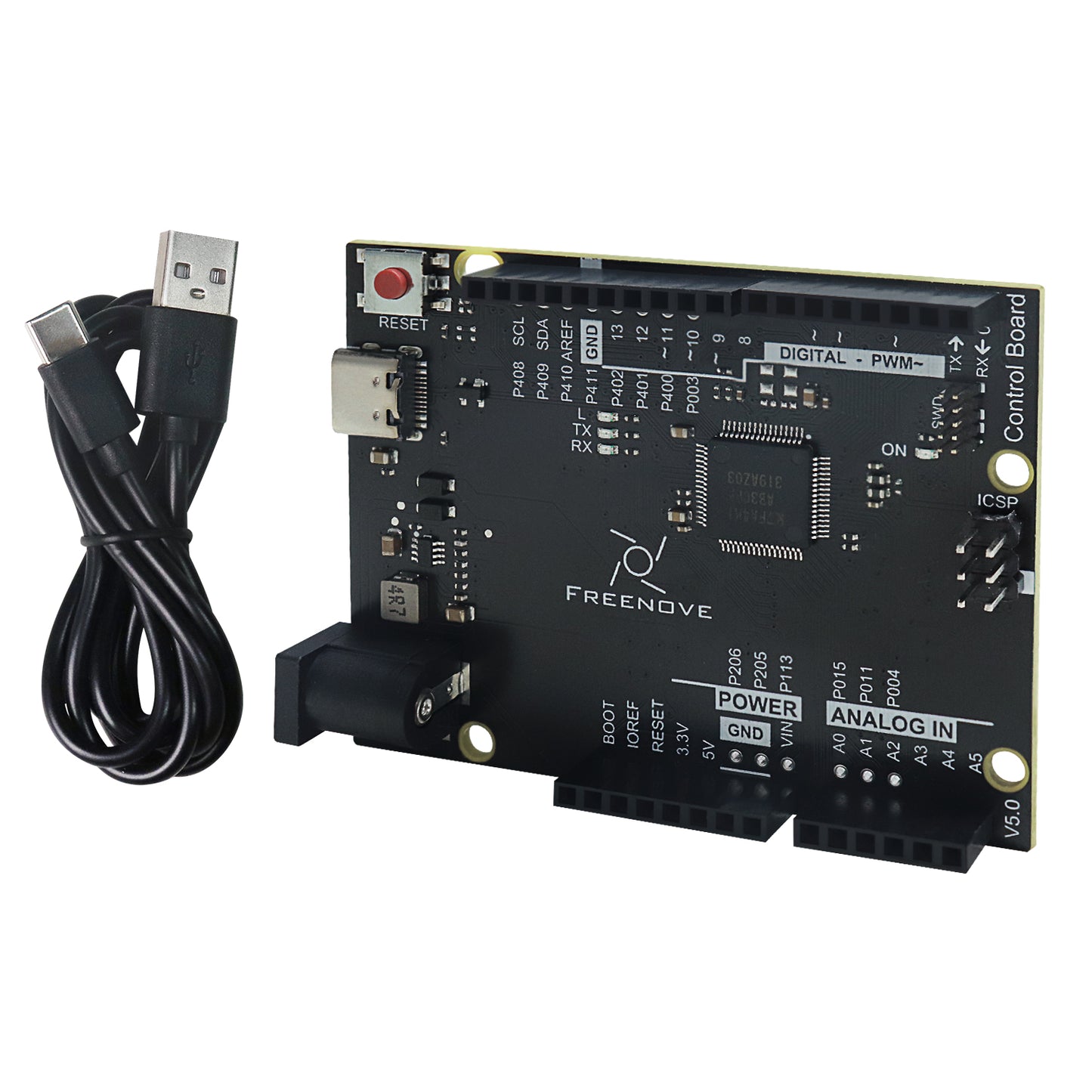

1* Freenove control board V5
1 x USB A to C cable
