Freenove Universal Breakout Board for Arduino Nano Raspberry Pi Pico ESP32 Shield HAT, GPIO Status LED, Switchable 5 V 3.3 V Power Outputs

Overview:

This breakout board can help you wire and know the status of the GPIO.
Just plug your main board into this breakout board to complete the installation.

We provide free technical support to help you with any questions and problems.

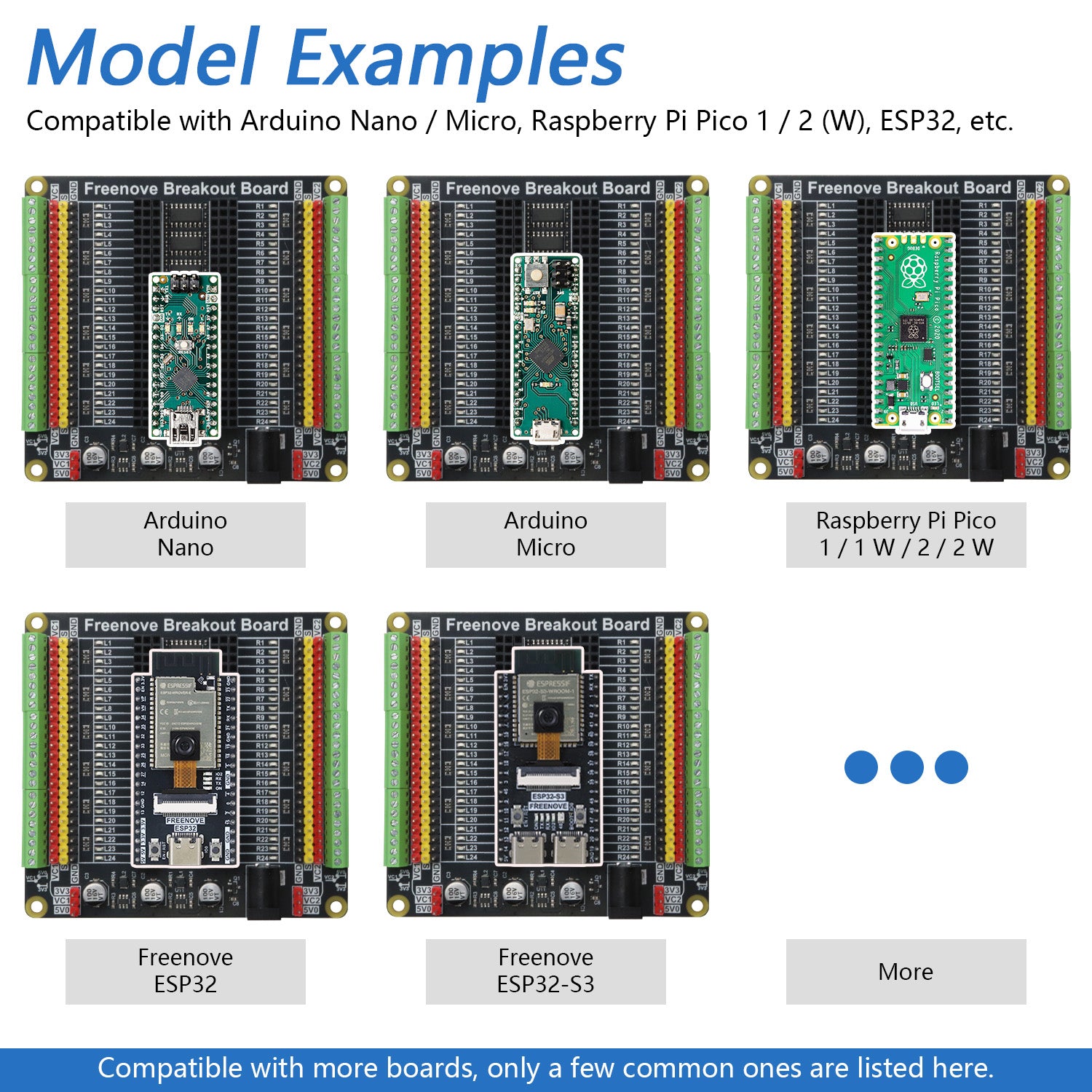

Compatible Models:

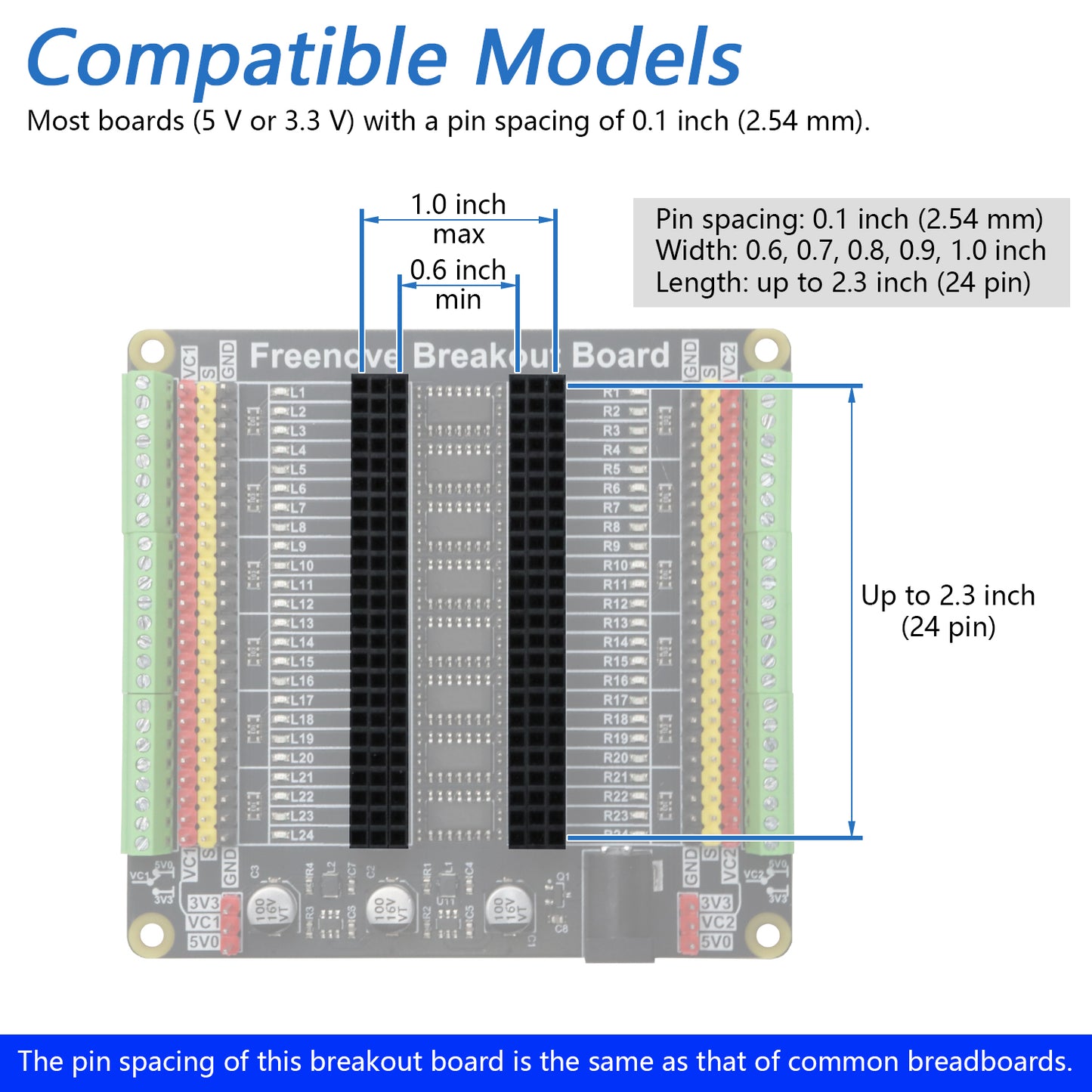

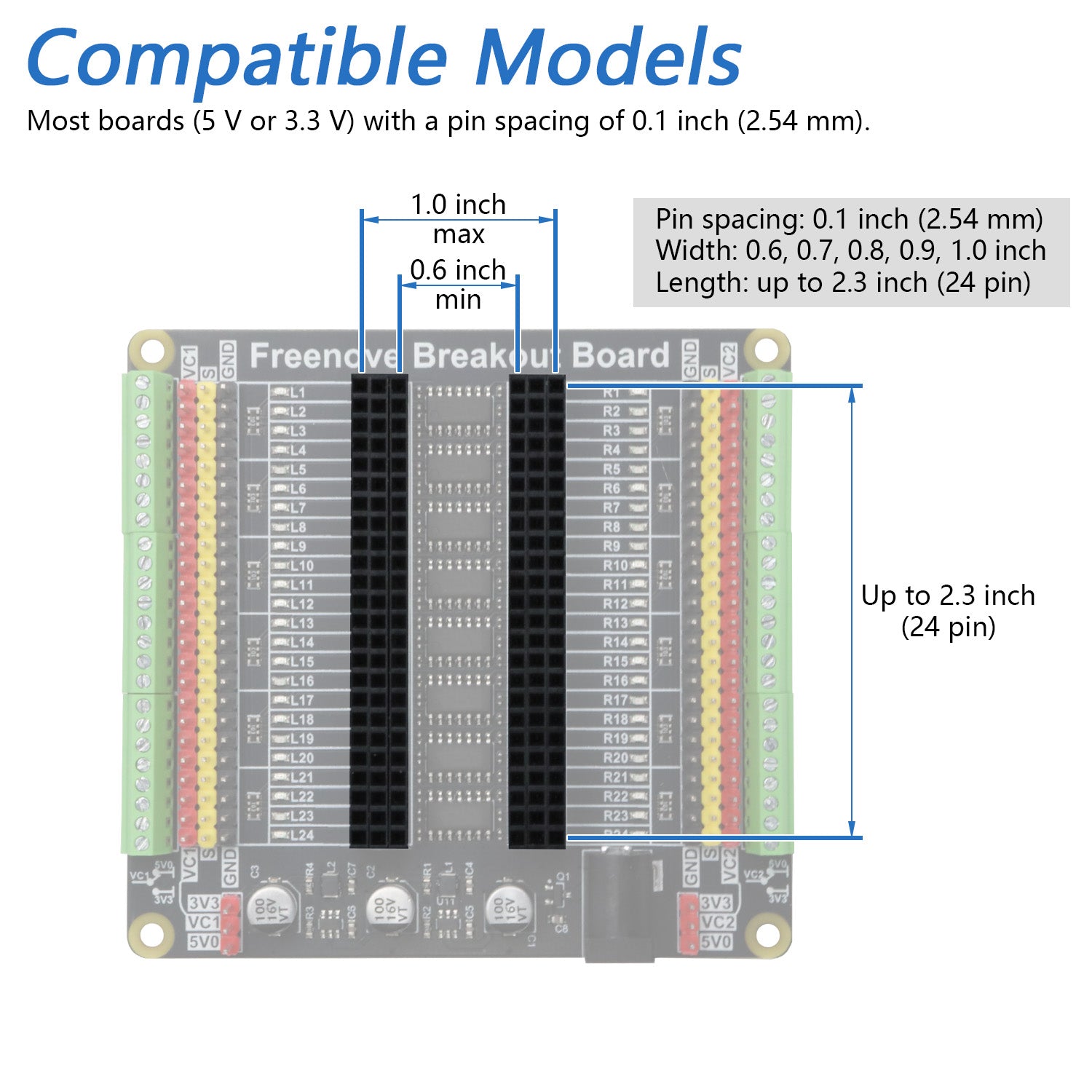

* Any board (5 V or 3.3 V) with a pin spacing of 0.1 inch (2.54 mm), width 0.6, 0.7, 0.8, 0.9, 1.0 inch and length up to 2.3 inch (24 pin).

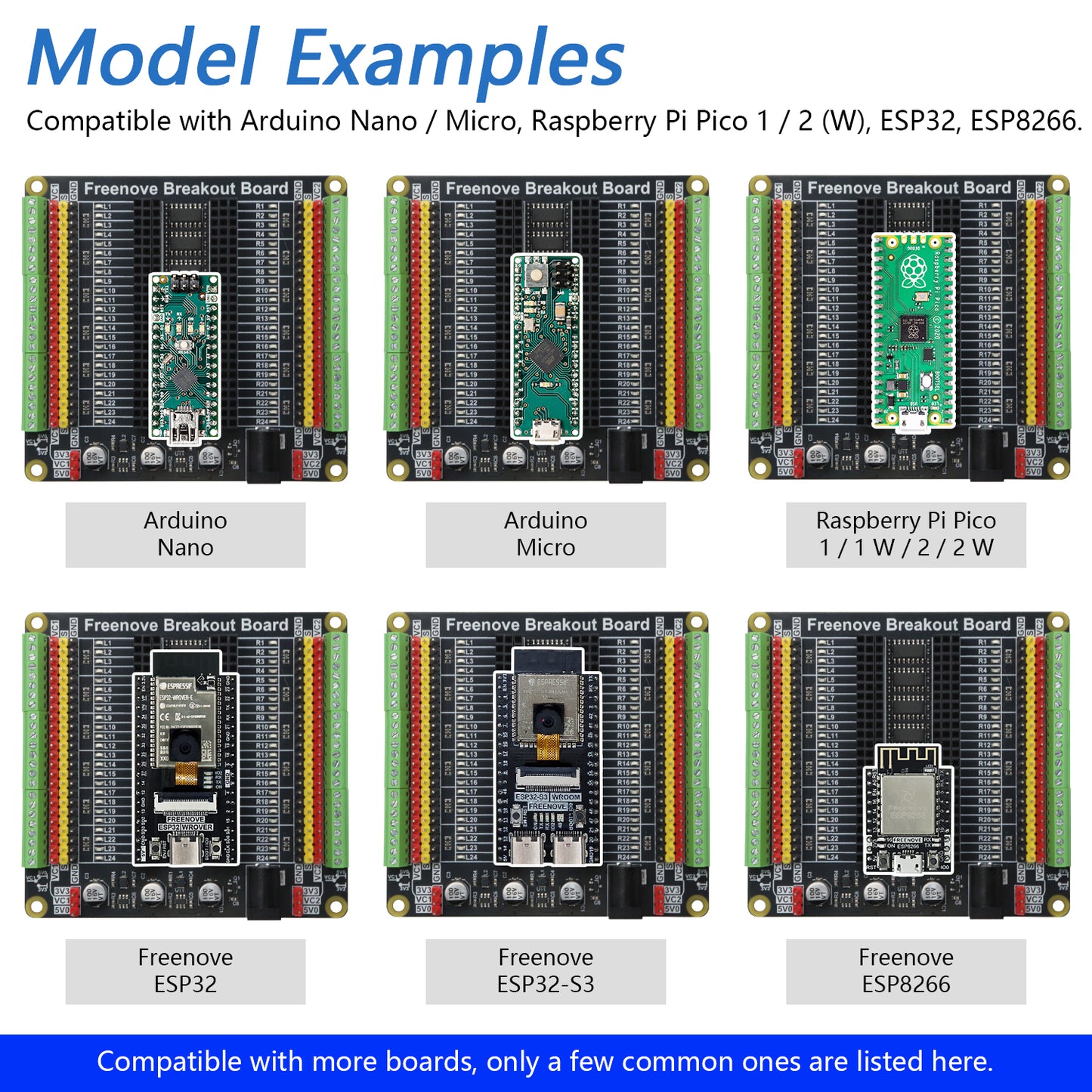

Compatible with Arduino Nano / Micro, Raspberry Pi Pico 1 / 2 (W), ESP32, etc.

Main Features:

* Tutorial
  Can be downloaded (in English) or viewed online (original in English, can be translated into other languages by browsers).
  Including step-by-step guide to show how to use.

  The tutorial link can be found on the product box. (No paper tutorial.)

  http://freenove.com/fnk0101

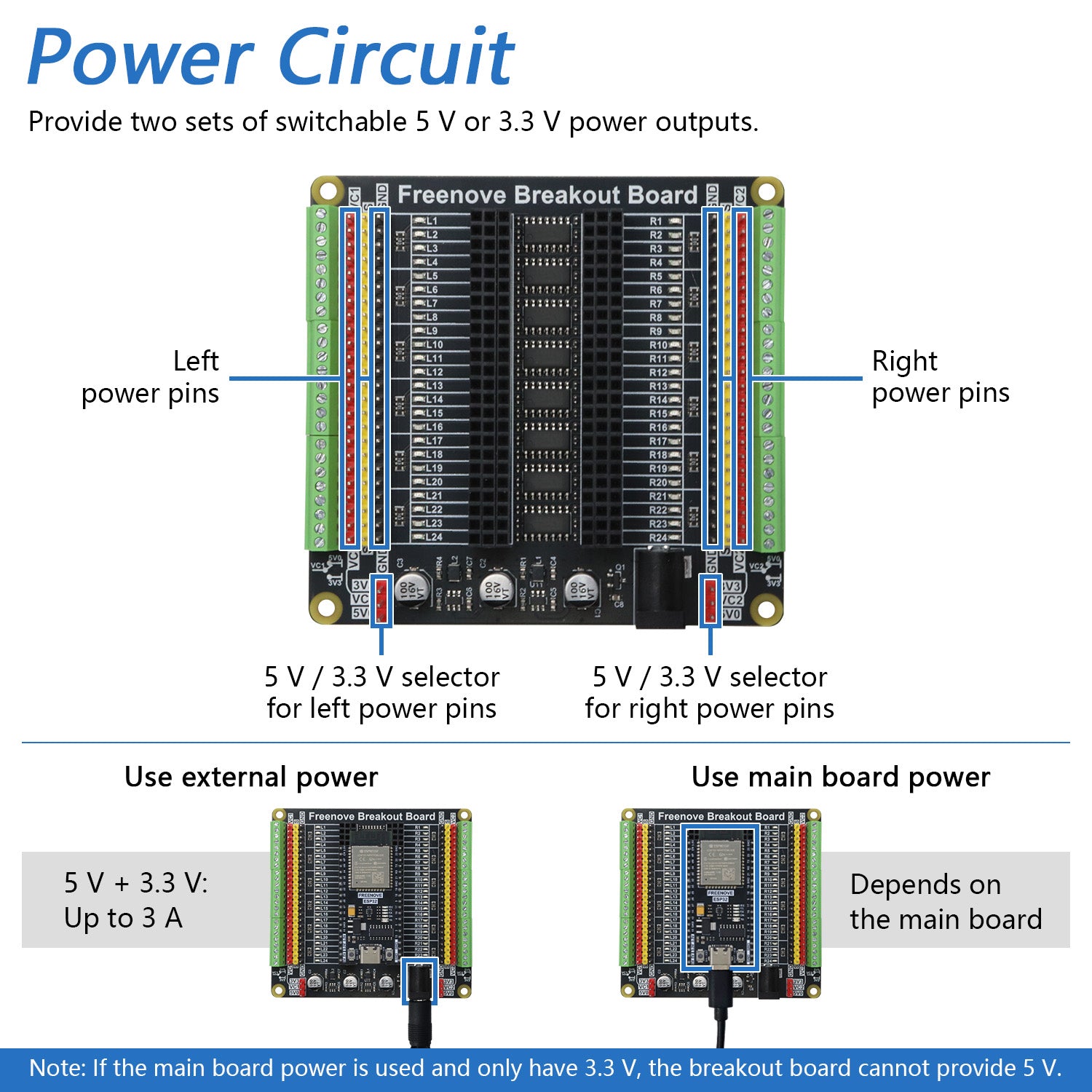

* Power supply

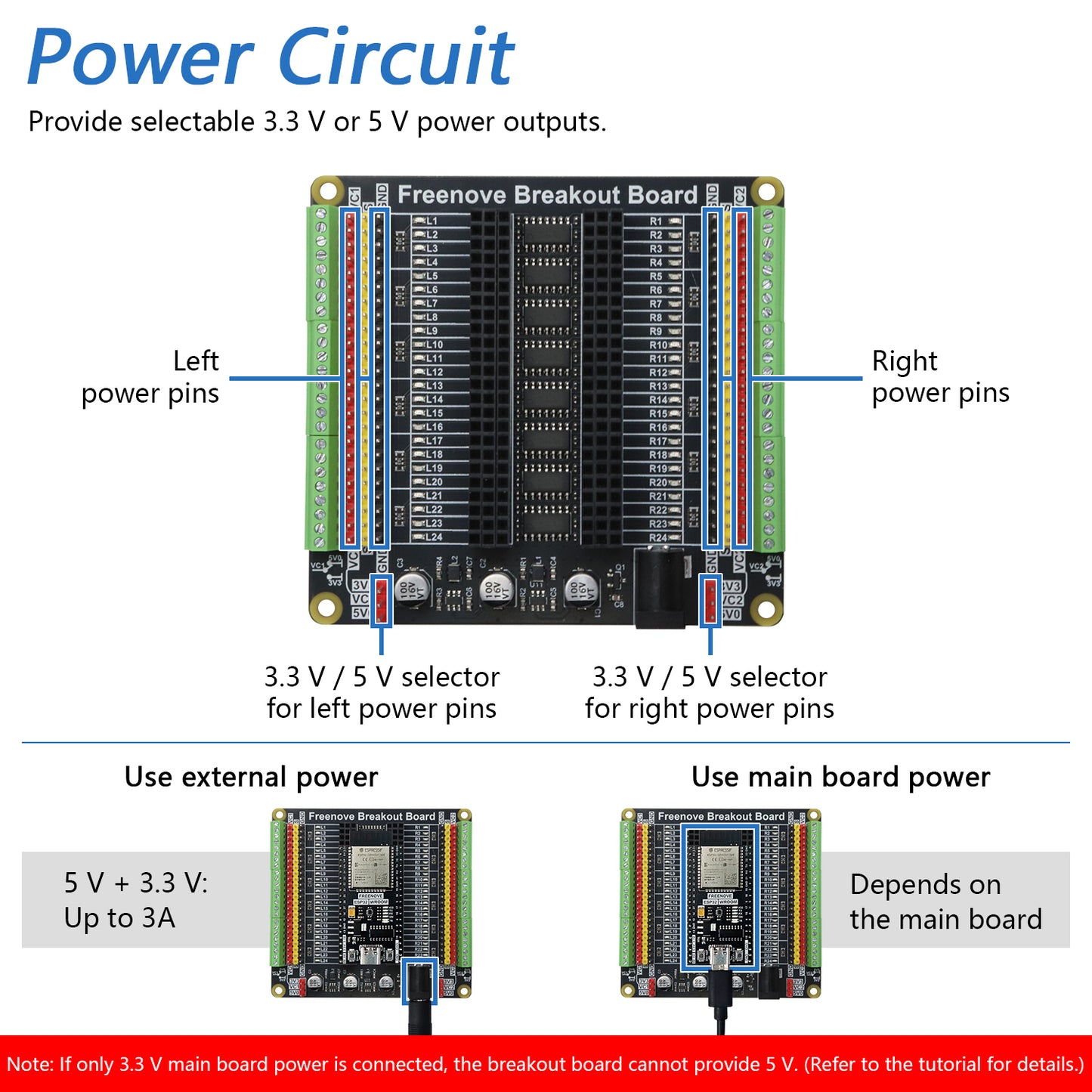

  Provide two sets of switchable 5 V or 3.3 V power outputs, up to 3 A if connected to an external power supply.
  (Need to configure jumper caps, please refer to the tutorial.)

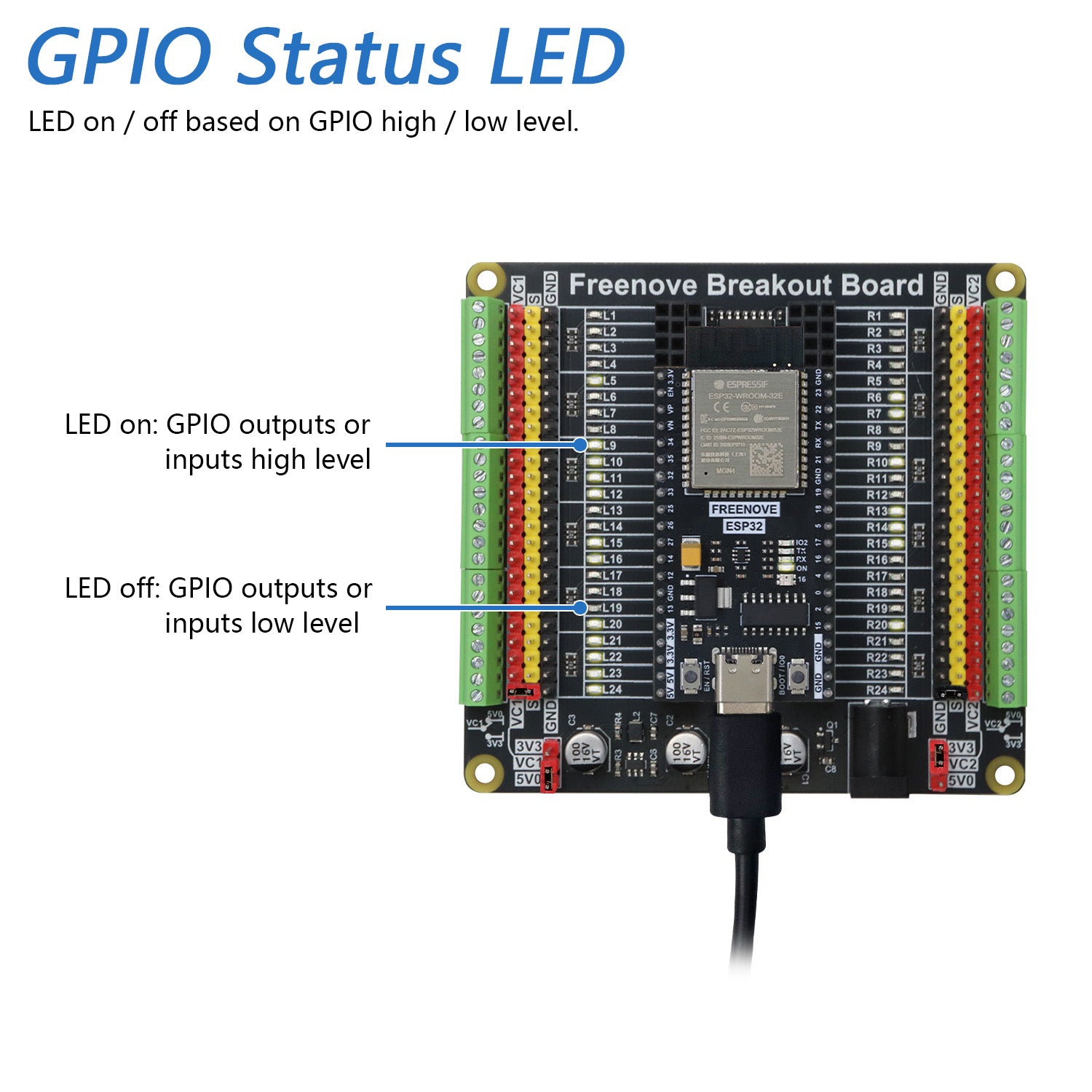

* GPIO status LED

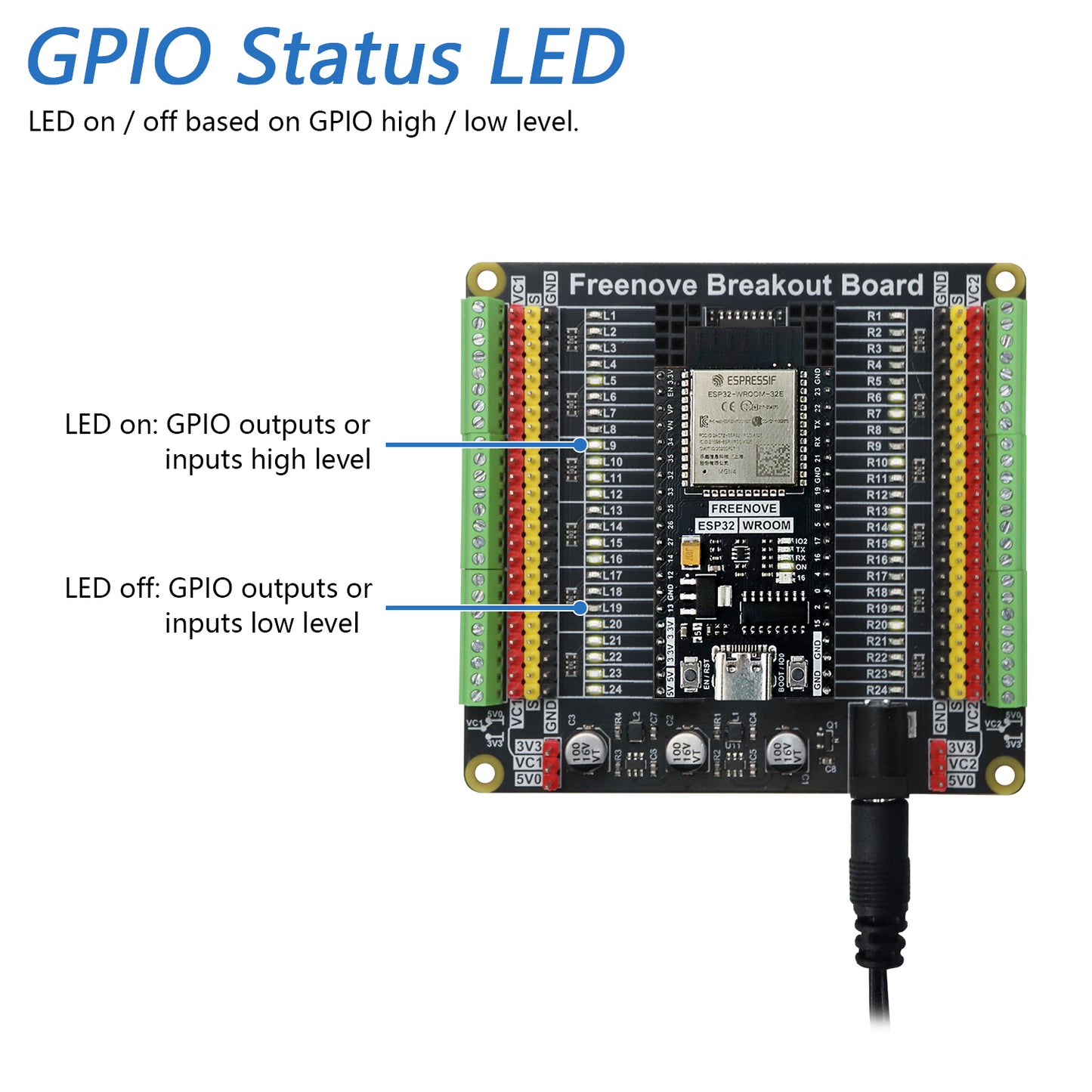

  LED on if GPIO outputs / inputs high level, LED off if GPIO outputs / inputs low level.

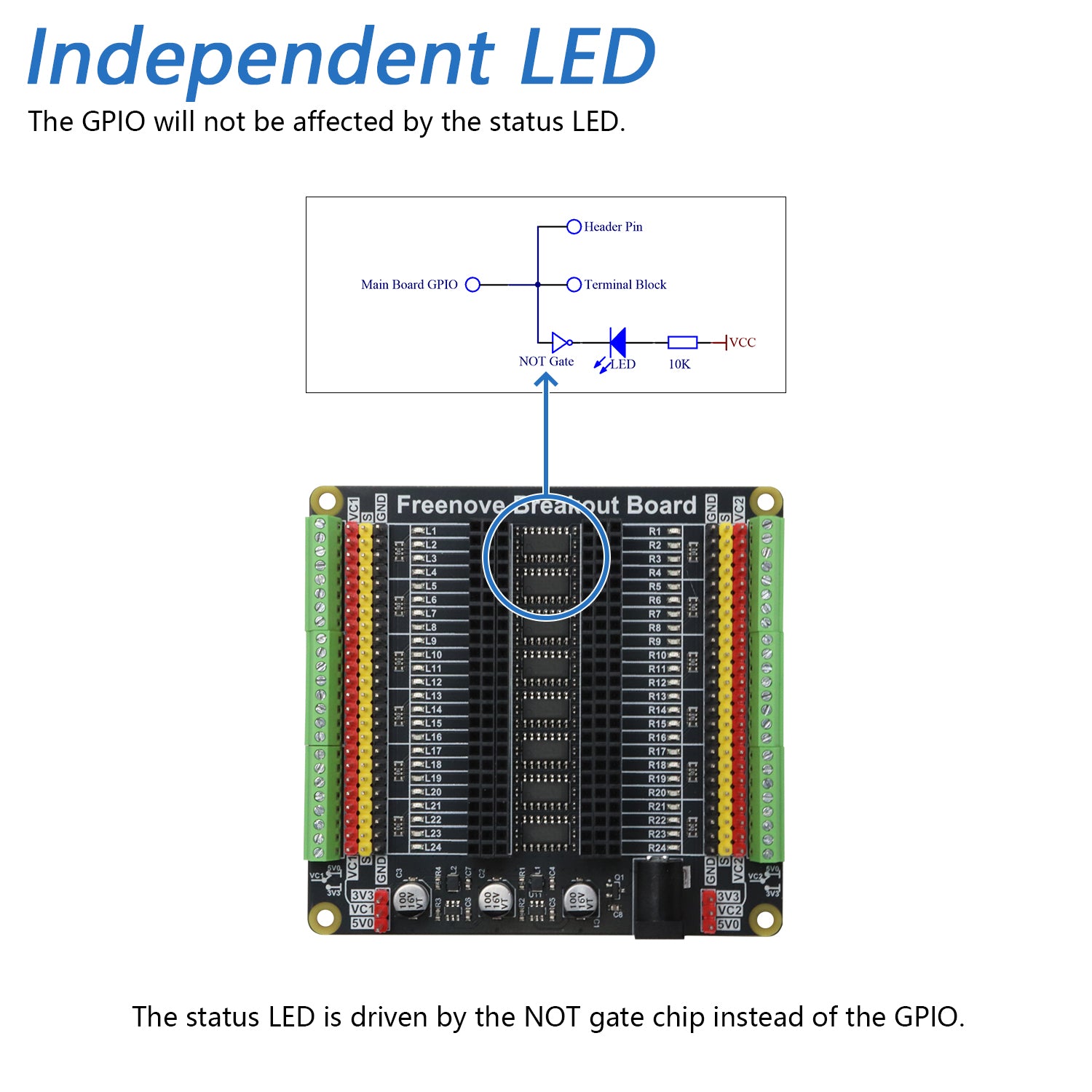

* Independent LED

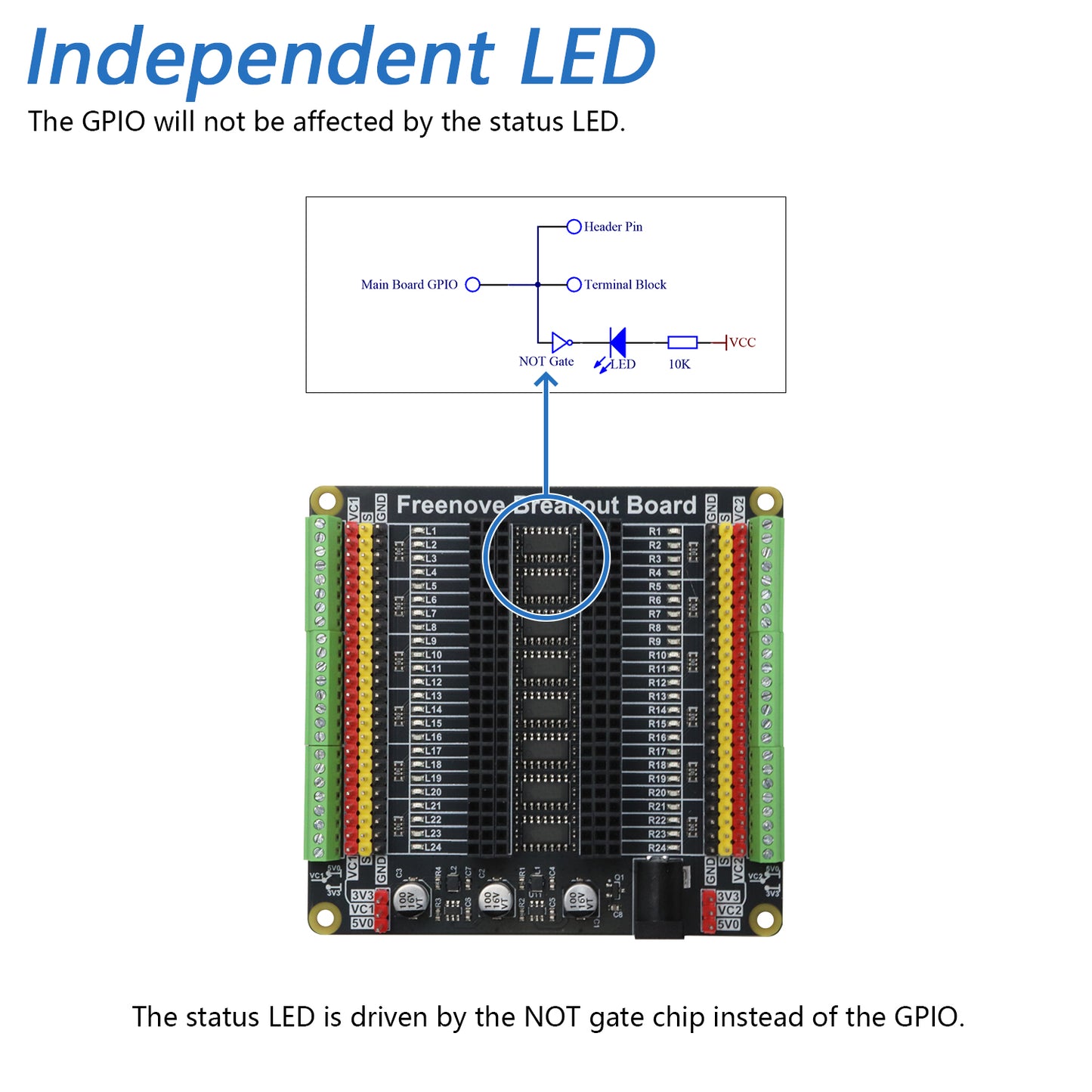

  The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected.

* Terminal block and header
  Connect to all pins of the main board, 2.54 mm (0.1 inch) pitch.

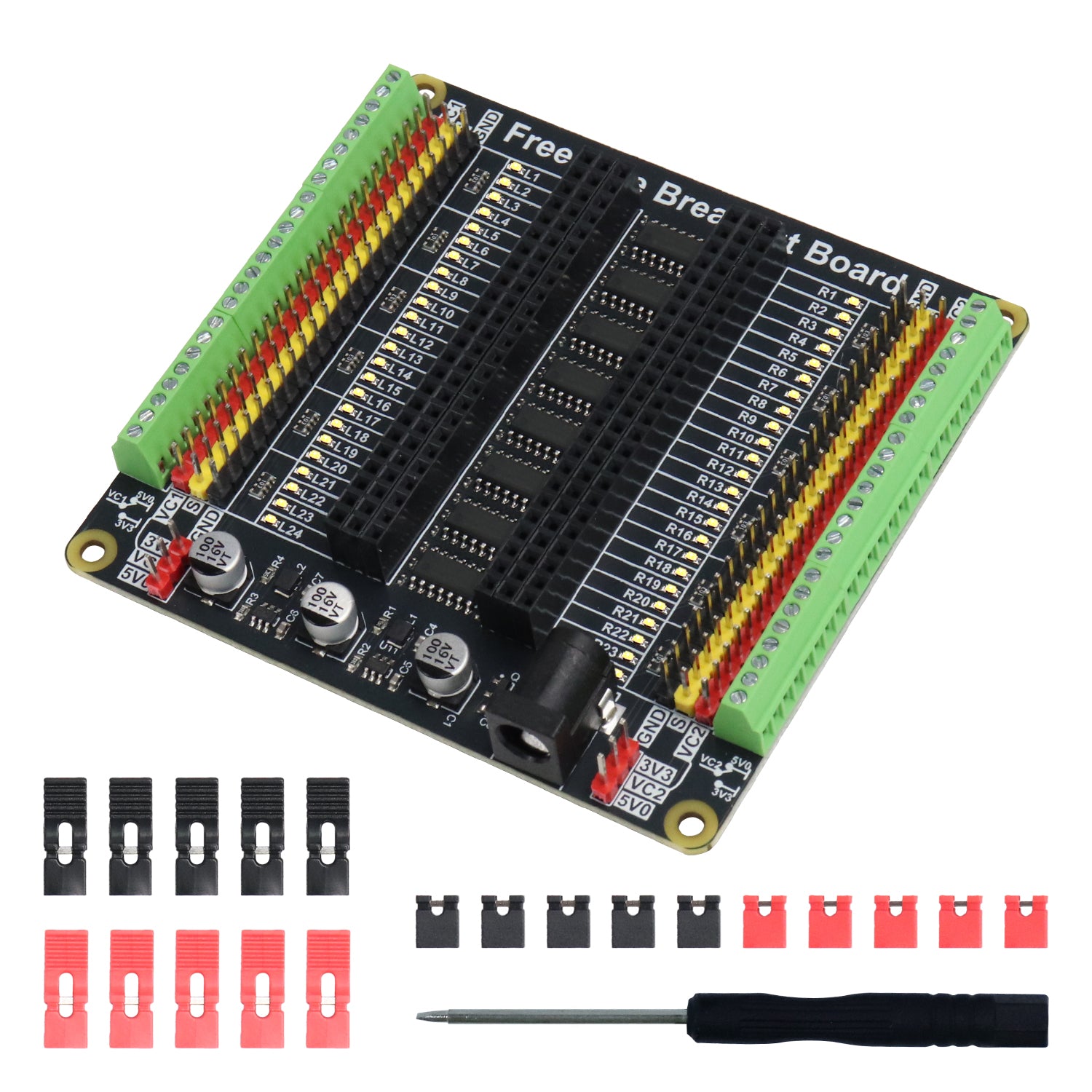

Package Includes:

1 x Breakout board
1 x Slotted screwdriver
5 x Jumper cap (red, short)
5 x Jumper cap (red, long)
5 x Jumper cap (black, short)
5 x Jumper cap (black, long)
